Pipe Cross Fittings
Category: Buttweld Fittings

Pipe Cross Fittings

Stainless Steel Equal Cross Dimensions And Copper Cross Pipe Fittings Weight Chart.

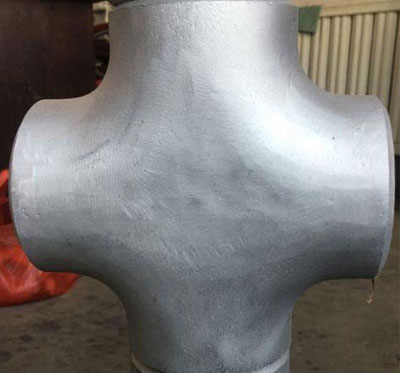

What Is Equal Cross?

ASME B16.9 Cross belongs to the standard of pipe fittings that range from ½ inch to 48 inches in diameter. A cross is a type of pipe fitting that has four openings on one connection. The fitting looks like a cross and connects four different pipes into one point. Due to this reason, the fluid flow could be interrupted with temperature differences as the shape is mechanically unstable for fluid flow planes. ASME B16.9 Equal Cross Fitting is a cross with all four arms of it having the same diameter and connecting to four pipes of the same diameter as well.





ASME B16.9 Cross



Stainless Steel Equal Cross



Equal Cross Fitting





Table of contents

  • Why Use Stainless Steel Equal Cross In Larger Pipe Lines?
  • What is The Use of B16.9 Equal Cross?
  • Cross Equal Fittings Use In High-Pressure Environments?
  • ASME B16.9 Cross Specification
  • ASME B16.9 Equal Cross Dimensions
  • Carbon Steel Equal Cross Weight Chart
  • Black Pipe Cross Fittings Temperature
  • Copper Cross Pipe Fittings Working Pressure Table
  • Buttweld Equal Cross Dimensional Tolerance
  • Most Popular Types Of ASME B16.9 Cross



Why Use Stainless Steel Equal Cross In Larger Pipe Lines?

This is the most common type of cross. Unequal cross is also available but is not very common in applications. Asme B16.9 Crosses range from ½ inch to 48 inches in nominal diameters and are used with larger pipe lines. The Equal Cross Fitting Suppliers sell crosses of different sizes, material and mechanical properties. The Cross Fitting Dimensions are decided by the connecting pipes, the expected maximum pressure and the material used.



What is The Use of B16.9 Equal Cross?

Cross Pipe Fitting Dimensions play an important role in deciding the strength and stability. When the same size pipes are connected and fluids flow from one direction, it will be divided into three directions. Cross Tee Pipe Fitting Dimensions become problematic when fluid flows in by three directions and is expected to move out in one direction. Equal Cross Fitting Suppliers produce different kinds such as Ansi B16.9 Pipe Cross Fittings and the Stainless Steel Buttweld Equal Cross Fittings which are stronger.



Cross Equal Fittings Use In High-Pressure Environments?

The SS Equal Cross Fitting is the most commonly used material for cross. The Asme B16.9 Equal Cross is used with much larger pipe systems such as water lines. Buttweld Lateral Cross has connections in lateral angles and is used only with specific applications. The stronger Carbon Steel Butt Weld Equal Cross is used in known high pressure environments. All Cross Pipe Fittings are expensive than their tee counterparts.





We Supplying Carbon Steel Butt Weld Equal Cross To Overseas Customers And Leading Manufacturer Of Black Pipe Crosses Fittings In India.

ASME B16.9 Cross Specification

Specification: ASME B16.9 Cross
Type Reducer, Cap, Adapter, Elbow, Stub End, Bend, Tee, Wye, Cross,
Connection Type End Bell / Threaded / Clamp End / Weld/ Flange/
Pressure-Temperature Class 1500LB, 2500LB, 150LB, 300LB, 600LB.
Thickness: Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc.
Type Of Dimension: JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, BS1640, EN 10253 - 4, DIN 2605, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313
Schedule: Schedule 5 TO Schedule XXS.
Size: Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48”
Materials: Inconel, Monel, Hastalloy, Alloy Steel, Brass, Bronze, Copper, Iron (Ductile/Cast), Carbon Steel, Titanium, Chrome-molybdenum, Nickel Alloys, Tantalum, Stainless Steel, Cupro-Nickel 90/10 & 70/30, Nickel.
Surface Coatings: Black Painted, Epoxy Coated, Varnished, Galvanized.
Type: Butt Weld (BW), Seamless (SMLS) Welded
Standard EN, ISO, DIN, JIS, NPT



Get Most Popular Types Of Cross Equal Fittings Manufacturer In India.

ASME B16.9 Equal Cross Dimensions

(NPS) DN O.D. at Bevel Center- to-End
Run.C Outlet. M[Notes(1) and (2)]
1/2 15 21.3 25 25
3/4 20 26.7 29 29
1 25 33.4 38 38
1-1/4 32 42.2 48 48
1-1/2 40 48.3 57 57
2 50 60.3 64 64
2-1/2 65 73.0 76 76
3 80 88.9 86 86
3-1/2 90 101.6 95 95
4 100 114.3 105 105
5 125 141.3 124 124
6 150 168.3 143 143
8 200 219.1 178 178
10 250 273.0 216 216
12 300 323.8 254 254
14 350 355.6 279 279
16 400 406.4 305 305
18 450 457 343 343
20 500 508 381 381
22 550 559 419 419
24 600 610 432 432
26 650 660 495 495
28 700 711 521 521
30 750 762 559 559
32 800 813 597 597
34 850 864 635 635
36 900 914 673 673
38 950 965 711 711
40 1000 1016 749 749
42 1050 1067 762 711
44 1100 1118 813 762
46 1150 1168 851 800
48 1200 1219 889 838



Check Buttweld 4 Way Fittings Price List in Mumbai, India, ANSI B16.9 Pipe Cross Fittings Pressure Rating Class.

Carbon Steel Equal Cross Weight Chart

NPS In SCH 10 SCH 20 SCH 30 SCH 40
wall thk millimeter weight kilogram weight kilogram wall thk millimeter weight kilogram weight kilogram wall thk millimeter weight kilogram weight kilogram wall thk millimeter weight kilogram weight kilogram
T T T T
1/2″ 2.77 0.21
3/4″ 2.87 0.21
1″ 3.38 0.34
1.1/4″ 3.68 0.92
1.1/2″ 3.56 0.63
2″ 3.91 1.49
2.1/2″ 5.16 2.68
3″ 5.49 3.75
3.1/2″ 5.74 5
4″ 6.02 6.5
5″ 6.55 10
6″ 7.11 16
8″ 6.35 23 7.04 24.6 8.18 27
10″ 6.35 34.7 7.8 40 9.27 41
12″ 6.35 43.4 8.38 56.6 10.31 70.5
14″ 6.35 68 7.92 84 9.53 102 11.13 105
16″ 6.35 90.8 7.92 100 9.53 110 12.7 167
18″ 6.35 93.1 9.53 127 11.13 164 14.27 237.45
20″ 6.35 112 9.53 168 12.7 245 15.09 320
22″ 6.35 146 9.53 220 12.7 280
24″ 6.35 160 12.7 240 14.27 373 17.48 570.65
26″ 7.92 293.28 12.7 360.2
28″ 7.92 280.98 12.7 421 15.88 526.25
30″ 7.92 322.64 12.7 483.1 15.88 603.75
32″ 7.92 375.23 12.7 559 15.88 698.75 17.48 768.6
34″ 7.92 482.72 12.7 644.1 15.88 805.13 17.48 885.65
36″ 7.92 488.3 12.7 730.3 15.88 912.88 19.05 1004.17



Refer 304 / 316 Stainless Steel Buttweld Equal Cross Fittings Thickness Calculation For Pressure Vessel.

Black Pipe Cross Fittings Temperature

Pressure-Temperature ratings for ASME B16.9 Cross fittings (psig)
Temperature Ratings Pressure Class
150 300
1/4 - 1 inch. 1 1/4 - 2 inch. 2 1/2 - 3 inch.
(oF) (oC)
-20 to 150 -29 to 66 300 2000 1500 1000
200 93 265 1785 1350 910
250 121 225 1575 1200 825
300 149 185 1360 1050 735
350 177 150 1150 900 650
400 204 - 935 750 560
450 232 - 725 600 475
500 260 - 510 450 385
550 288 - 300 300 300



Copper Cross Pipe Fittings Working Pressure Table

Service Pressure Temperature Limits Pressure Limits
condensate & Steam maximam 366oF (186oC),
minimum 0oF (-18oC)		 150 psig (1000 kPa)
gases & vapors, Air maximam 200oF (93oC),
minimum 0oF (-18oC)		 150 psig (1000 kPa)
Nonflammable Liquids maximam 250oF (121oC),
minimum 0oF (-18oC)		 350 psig (2300 kPa)



Buttweld Equal Cross Dimensional Tolerance

NPS 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
O.D.
at Bevel (D)		 + 1.6
– 0.8		 1.6 1.6 + 2.4
– 1.6
I.D. at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
NPS 10 to 18 20 to 24 26 to 30 32 to 48
O.D.
at Bevel (D)		 + 4
– 3.2		 + 6.4
– 4.8		 + 6.4
– 4.8		 + 6.4
– 4.8
I.D. at End 3.2 4.8 + 6.4
– 4.8		 + 6.4
– 4.8
Overall Length (Hight) 2 2 5 5
Wall Thickness (t) Not less than 87.5% of Thickness Of Nominal Wall



Most Popular Types Of ASME B16.9 Cross



10 Inch, SCH 40, DN300, Stainless Steel Equal Cross

8 Inch, SCH XXS, Black, Carbon Steel Equal Cross

AWWA C208, Dn25, DN1400, Cross Pipe Fittings

16 Inch, SCH STD, Dn40, Beveled Ends, Pipe Cross Fittings

3 Inch, SCH 40, PN16, ISO 2531, Pipe Cross Fittings

LTCS A420 WPL6 Black Pipe Cross Fittings

12 Inch, SCH40, A234 WPB, ANSI/ ASME B16.9 Equal Cross

2 Inch, DN450 x DN200, BW, Aluminium Cross Fittings

6 Inch, SCH XXS, ASTM A420 WPL6, Lateral Equal Cross

DN450, BW, ANSI B16.9, SMLS, ASTM A234 WP11 Welded Equal Cross

6 Inch, SCH XXS, BW, En 10253-2 Carbon Steel Cross Equal
