EN 1092-1 Stub End
Category: Buttweld Fittings

EN 1092-1 Stub End

Largest Independent Stub End En 1092-1 Type 36 Manufacturer In India.

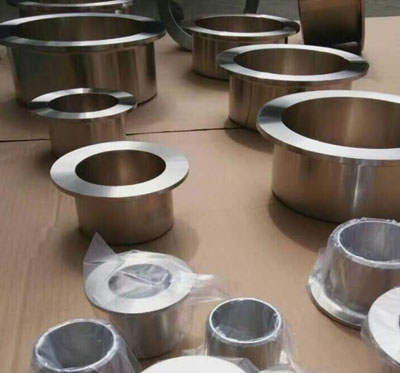

What is Stub End En 1092-1?

Stub End Buttweld Fittings differ in type such as the Mss Type B Stub End; material makes such as the Stub End Carbon Steel and the Stub End 304 or the Stub End Stainless Steel. Also the Stub End Specification differs such as the Stub End Din 2642 or the Stub End EN 1092-1 Type 35 and the Stub End EN 1092-1 Type 36. As in any other pipe fitting, the pressure classes differ as well.



Stub End En 1092-1

EN 1092-1 Type 34

Stub End En 1092-1 Type 36





Table of contents

  • Stainless Steel Stub End En 1092-1 Specification
  • Stub End En 1092-1 Dimensions
  • En 1092-1 Type 34 Stub End Dimensions
  • Welding Ring En 1092-1 Type 35 Dimensions
  • Stub End En 1092-1 Type 36 Dimensions
  • Stub End En 1092-1 Type 37 Dimensions
  • Most Frequent Types of Stub End En 1092-1





Check EN 1092-1 Type 37 Long Stub End Dimensions In Millimeter.

There are Stub End Jis 10k, the Stub End Sch 10 and the EN 1092-1 Stub End which all have different properties. The ASME B 16.9 Stub End can be manufactured in many different materials yet the Ss Stub End Dimensions make stainless steel to be the most preferred choice. ANSI B 16.9 Stub End is used in low to medium level piping ranging from ½ inch to 48 inches.

Refer EN 1092-1 Type 35 Short Stub End Weight Chart In Kilogram.

Stainless Steel Stub End En 1092-1 Specification

Specification: Stub End En 1092-1
Schedule: Schedule 5 TO Schedule XXS.
Size: Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48”
Materials: Carbon Steel, Titanium, Chrome-molybdenum, Brass, Bronze, Copper, Iron (Ductile/Cast), Nickel Alloys, Tantalum, Stainless Steel, Cupro-Nickel 90/10 & 70/30, Nickel, Inconel, Monel, Hastalloy, Alloy Steel.
Surface Coatings: Varnished, Epoxy Coated, Black Painted, Galvanized.
Type: Butt Weld (BW), Seamless (SMLS) Welded
Thickness: Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc.
Standard EN, ISO, DIN, JIS, NPT
Type Elbow, Reducer, Cap, Adapter, Wye, Cross, Stub End, Bend, Tee.
Connection Type Threaded/ Clamp End / End Bell / Weld/ Flange/
Pressure-Temperature Class 2500LB, 150LB, 300LB, 600LB, 1500LB.
Type Of Dimension: BS1640, EN 10253 - 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313



Most Frequent Types of ASME B16.9 Long And Short Stub end EN 1092-1 Type 34 For Sale In India.

Stub End En 1092-1 Dimensions

PN 2,5
DN A F H4 d1 S Sp kg
450 457,00 8 72 520 8 3,2 5,30
500 508,00 8 75 570 8 3,2 6,10
PN 6
DN A F H4 d1 S Sp kg
450 457,00 8 72 520 8 3,2 5,30
500 508,00 8 75 570 8 3,2 6,10
PN 10
DN A F H4 d1 S Sp kg
200 219,10 5 62 268 5 3,2 2,03
250 273,00 8 68 320 8 3,2 2,65
300 323,90 8 68 370 8 3,2 3,12
350 355,60 8 68 430 8 3,2 4,00
400 406,40 8 72 482 8 3,2 4,73
PN 16
DN A F H4 d1 S Sp kg
10 17,20 2 35 40 2 2 0,05
15 21,30 2 38 45 2 2 0,06
20 26,90 2,5 40 58 2,6 2,6 0,10
25 33,70 2,5 40 68 2,6 2,6 0,15
32 42,40 3 42 78 3,2 3,2 0,26
40 48,30 3 45 88 3,2 3,2 0,31
50 60,30 3 45 102 3,2 3,2 0,36
65 76,10 3 45 122 3,2 3,2 0,47
80 88,90 3 50 138 3,2 3,2 0,57
100 114,30 4 52 158 3,2 3,2 0,73
125 139,70 4 55 188 4 3,2 1,20
150 168,30 5 55 212 5 3,2 1,40
200 219,10 6 62 268 6 3,2 2,03
250 273,00 10 68 320 10 3,2 2,65
300 323,90 10 68 378 10 4 3,12
350 355,60 10 68 438 10 4 4,00
400 406,40 10 72 490 10 4 4,73



MSS SP 43 Stub End EN 1092-1 Manufacturer And Supplier In India.

En 1092-1 Type 34 Stub End Dimensions



Welding Ring En 1092-1 Type 35 Dimensions



Stub End En 1092-1 Type 36 Dimensions



Stub End En 1092-1 Type 37 Dimensions



Most Frequent Types of Stub End En 1092-1



6 Inch, SCH 10S, Stainless Steel Stub End En 1092-1

2 Inch, B16.9, 140mm, Carbon Steel EN 1092-1 Type 34

Thickness SCH 10S, Standard MSS SP-43, Nickel Stub End En 1092-1 Type 36

SCH 40S, BW, 6 Inch, Malleable Iron EN 1092-1 Type 37



3 Inch, ASTM A403 TP904L Stainless Steel stub end en 1092-1 type 33

2 Inch, SCH 10S, Ductile Iron stub end en 1092-1 type 35

8 Inch, ASTM A403 WP316 Stub End EN 1092-1 type 36

Beveled Ends, 10 Inch, ANSI B16.9 Standard, stub end EN 1092-1 Type 37
