Buttweld Equal Tee Manufacturer, ANSI/ASME B16.9 Equal Tee Suppliers
ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43 Equal Pipe Tee Suppliers, Check ASME B16.9 Welded Equal Tee Dimensions & Buttweld Equal Tee Price List, ASME B16.9 Equal Tee Manufacturer in India.
- Buttweld Equal Tee Specifications
- Buttweld Equal Tee Dimensions
- Manufacturing Standards of Buttweld Equal Tee
- Buttweld Equal Tee Material & Grades
- ASME B16.9 Buttweld Equal Tee Weight Chart
- ANSI B16.9 Buttweld Equal Tee Manufacturing Process
- Dimensional Tolerances of Equal Tee as per ASME B16.9
- Available Types of ASME B16.9 Buttweld Equal Tee
- Butt weld Equal Tee Application Industries
- Equal Tee Pipe Fittings Inspection
- Buttweld Equal Tee Packing & Forwarding
ASME / ANSI B16.9 Seamless Equal Tee, High-Quality Welded Equal Tee Exporters in India, Industrial SMO 254 Welded Equal Tee, ANSI/ASME B16.9 Stainless Steel Equal Tee also available in Duplex Steel, Alloy Steel, Hastelloy, Monel, Carbon Steel, Inconel, Titanium, Incoloy, Super Duplex, Alloy 20, 254 SMO, Copper Nickel, High & Low-Temperature Steel, Mild Steel Suppliers in Malaysia, South Afric, Singapore, UK, Philippines, Australia and UAE.

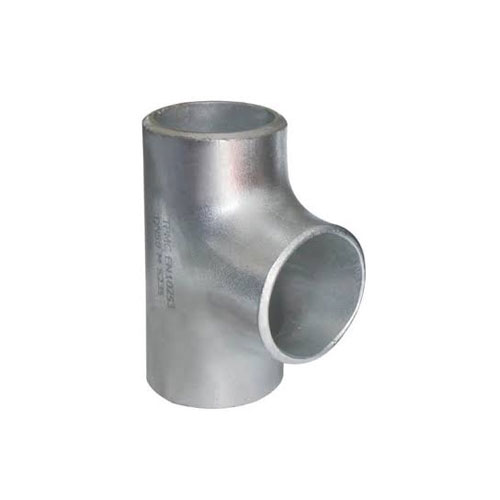

Masiva Solutions is one of the best Manufacturer, Suppliers, and Exporters of Equal Tee, which are also known as ‘straight tees’. These equal tees have a diameter that is similar to the diameter of the main pipe, hence the name ‘equal tee’. We furnish SS Buttweld Equal Tee that is installed without much hassle and requires less maintenance as well.
We provide ANSI B16.9 Equal Tee Pipe Fittings which are designed in compliance with international quality standards. Buttweld Equal Tee Fitting is one in which the branch port size is equal to the pipe-run. Butt-welded Equal Tee Pipe Fitting that is made with precision using the best quality raw material. We also customize Butt-welded Equal Tee as per the customer requirements.
We specialize in Manufacturing ASME B16.9 Equal Tee that is available in various standards, sizes, and dimensions. We are known as a specialist in ANSI B16.9 Equal Tee used to create multiple connections of pipe. These Seamless & Welded Equal Tees conform to ANSI B 16.9 dimensional standard available in classes 2000 to 9000 and Schedules from 10 to 160.
ANSI B16.9 Buttweld Equal Tee Specifications
- Type Industrial Equal Tee
- Size 1/2″～48″ NB. (Seamless & 100% X-Ray Welded, Fabricated)
- Standard ANSI B16.9, ANSI B16.28, MSS-SP-43
- Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40
- Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75.
- DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
- BS BS4504 , BS4504, BS1560, BS10
- Specialize As per drawing
- Coating / Surface Treatment Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
- Connection Type Buttwelding Fittings
- Dimensions ANSI B16.9, ANSI B16.28, MSS-SP-43
- Usage/Applications Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
Buttweld Equal Tee Dimensions
ASME B16.9 Buttweld Equal Tee Dimensions
Manufacturing Standards of Buttweld Equal Tee
| ASME Standard |
ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43 |
| DIN Standard |
DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard |
EN10253-2, EN10253-1 |
| ASME B16.25 |
Buttwelding Ends |
| ASME B16.9 |
Factory-Made Wrought Fittings Buttwelding |
| ASME B16.28 |
Wrought Steel Equal Tee |
| ASTM A403 – ASME SA403 |
Standard Specification for Wrought Austenitic Stainless Steel Piping Fitting |
| MSS SP-43 |
Wrought & Fabricated Butt-Welding Fitting for Low Pressure, Corrosion Resistant Applications |
ASME / ANSI B16.9 Buttweld Equal Tee Material & Grades
Stainless Steel Buttweld Equal Tee :
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel Buttweld Equal Tee :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462
Carbon Steel Buttweld Equal Tee :
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Buttweld Equal Tee : ASTM A420 WPL3, A420 WPL6
Alloy Steel Buttweld Equal Tee :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Nickel Alloy Buttweld Equal Tee :
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
ASME B16.9 Buttweld Equal Tee Weight Chart
| DN |
NPS |
STD |
40 |
XS |
80 |
160 |
XXS |
| 40 |
1 1/2 |
0.9 |
0.9 |
1.3 |
1.3 |
1.5 |
1.3 |
| 50 |
2 |
1.5 |
1.5 |
2.2 |
2.2 |
2.7 |
3.4 |
| 65 |
2 1/2 |
2.7 |
2.7 |
3.0 |
3.0 |
3.1 |
3.8 |
| 80 |
3 |
3.8 |
3.8 |
4.4 |
4.4 |
5.6 |
6.1 |
| 90 |
3 1/2 |
4.6 |
4.6 |
5.9 |
5.9 |
|
|
| 100 |
4 |
6.5 |
6.5 |
7.7 |
7.7 |
10.2 |
12.9 |
| 15 |
1/2 |
0.21 |
0.2 |
0.2 |
0.2 |
|
|
| 20 |
3/4 |
0.2 |
0.2 |
0.3 |
0.3 |
|
|
| 25 |
1 |
0.3 |
0.3 |
0.5 |
0.5 |
|
|
| 32 |
1 1/4 |
0.6 |
0.6 |
0.7 |
0.7 |
|
|
| 125 |
5 |
9.7 |
9.7 |
13.5 |
13.5 |
19.8 |
25.7 |
| 150 |
6 |
14 |
14 |
19.3 |
19.3 |
34 |
30.6 |
| 200 |
8 |
24.5 |
24.5 |
34.5 |
34.5 |
50 |
47.7 |
| 250 |
10 |
41.3 |
41.3 |
58.4 |
67.5 |
111.2 |
84.7 |
| 300 |
12 |
65 |
69 |
76.5 |
105 |
158 |
129 |
| 350 |
14 |
83 |
96 |
104 |
142 |
232 |
|
| 400 |
16 |
110 |
120 |
120 |
187 |
335 |
|
| 450 |
18 |
132 |
170 |
159 |
263 |
564 |
|
| 500 |
20 |
168 |
240 |
192 |
356 |
756 |
|
| 550 |
22 |
185 |
|
209 |
416 |
1002 |
|
| 600 |
24 |
222 |
345 |
251 |
548 |
1215 |
|
ASME B16.9 Buttweld Equal Tee Manufacturing Process
The most appropriate Manufacturing Process for every product are going to be decided considerately of its material, sizes, shape, use, standards, and special properties. There are various Pipe Fittings Manufacturing Processes that want to manufacture Equal Tee, and other pipe Fittings.
One of the foremost common Pipe Fittings Manufacturing Process of Buttweld Equal Tee Pipe Fittings from the pipe is a mandrel method which is quite hot forming methods. During this method, The pipe is cut into pieces and push with the assistance of a hydraulic pump. The heating coil heats the pipe and, it’s pushed over a die called, “mandrel” which allows the pipe to expand and bend simultaneously. This method is often wont to manufacture a good range of the diameter of Equal Tee.
Buttweld Equal Tee are manufactured from Seamless Pipe and from Welded Pipe with filler materials. Large diameter fittings are manufactured from Plate. We’ve only covered the renowned Pipe Fittings Manufacturing Process here. There are many other methods that used to support the necessities.
Dimensional Tolerances of Buttweld Equal Tee as per ASME B16.9
| Nominal Pipe Size |
1/2 to 2½ |
3 to 3½ |
4 |
5 to 8 |
Outside Diameter
at Bevel (D) |
+ 1.6
– 0.8 |
1.6 |
1.6 |
+ 2.4
– 1.6 |
| Inside Diameter at End |
0.8 |
1.6 |
1.6 |
1.6 |
| Center to End LR (A/B) |
2 |
2 |
2 |
2 |
| Center to End 3D (A/B) |
3 |
3 |
3 |
3 |
| Nominal Pipe Size |
10 to 18 |
20 to 24 |
26 to 30 |
32 to 48 |
Outside Diameter
at Bevel (D) |
+ 4
– 3.2 |
+ 6.4
– 4.8 |
+ 6.4
– 4.8 |
+ 6.4
– 4.8 |
| Inside Diameter at End |
3.2 |
4.8 |
+ 6.4
– 4.8 |
+ 6.4
– 4.8 |
| Center to End LR (A/B) |
2 |
2 |
3 |
5 |
| Center to End 3D (A/B) |
3 |
3 |
6 |
6 |
| Wall Thickness (t) |
Not less than 87.5% of Nominal Wall Thickness |
Available Types of ASME B16.9 Buttweld Equal Tee
| High Nickel Alloy Equal Tee |
Hastelloy Pipe Tees |
| Titanium Buttweld Tee |
Inconel Butt weld Barred Tee |
| Stainless Steel Equal Tee |
SS Equal Tees |
| ANSI B16.9 Buttweld Tee |
ASME B16.28 Buttweld Pipe Tees |
| Welded Butt weld Equal Tee |
Seamless Butt weld Equal Tee |
| Carbon Steel Lateral Tee |
High Quality Equal Tee |
| Buttweld Equal Tee |
Butt Weld Tees |
| ASME B16.9 Butt weld Equal Tee |
Steel Tee Pipe Fittings |
| ASTM A403 Stainless Steel Equal Tees |
Duplex Steel Buttweld Tee |
| Super Duplex Steel Buttweld Tee |
Copper Nickel Equal Tee |
Butt weld Equal Tee Application Industries
- Refineries
- Food Processing & Dairy
- Oil and Gas Industry
- Off-Shore Oil Drilling Companies
- Pharmaceutical Equipment
- Pulp & Paper Industry
- Power Generation
- Specialty Chemicals
- Sea Water Equipment
- Gas Processing
- Chemical Equipment
- Heat Exchangers
- Petrochemicals
- Pharmaceuticals
- Condensers
ANSI/ASME B16.9 Equal Tee Inspection
All buttweld Equal Tee are inspected and tested in accordance with the relevant product standard (eg. ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43) or code and as stated in the Purchase requisition. Pressure testing or Hydro-testing of Stainless Steel Equal Tee where required by the standard shall be performed using water having less than 30ppm of chlorides. All welds in welded buttweld pipe fittings shall be 100% radiographed in accordance with the individual ASTM Standard. In lieu of radiography, Ultrasonic examination is not allowed. Examinations and/or tests may be reviewed and / or witnessed by the contractor or their authorized third party inspector at our facility. We are responsible for informing the contractor about the availability of goods for inspection and testing. Inspection is performed as per “Vendor Quality Requirement form” attached with the Inquiry / Purchase requisition. As a manufacturer, we submit the certificate of conformity of the material duly certified by inspector.
Buttweld Equal Tee Packing & Forwarding
Seamless Equal Tee are packed ready for export in a manner which allows easy handling and prevents damage. We submit our standard packing procedure to purchaser for approval. Open ends of Buttweld Equal Pipe Tee are supplied with heavy duty plastic protective plugs or caps. For bevelled ends, we insure that caps can protect the full area of the bevel. All material up to 6” in sizes shall be supplied in wooden boxes or cartons and as appropriate and adequately strapped. Buttweld Equal Tee Fittings over 6” shall be supplied on wooden pallets with metal straps. Also, the pallets shall be shrink wrapped. All shipping documentation is provided for seamless delivery from mill to purchaser.
