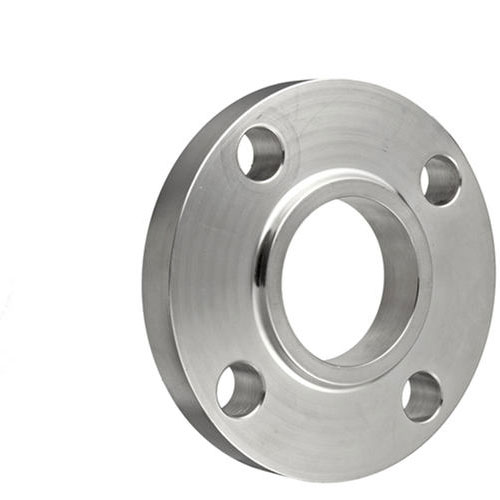

Lap Joint Flanges

ASME B16.47 / ANSI / ASME B16.5 Lap Joint Flange Manufacturer

ASME B16.47 Lap Joint Flange Suppliers, Series A, and Series B Lap Joint Flange, BS10 Lap Joint Flange, AWWA C207 Lap Joint Flange, EN 1092-1 Lap Joint Flange Price List. ANSI B16.5 Class 150, Class 300, Class 600, Class 900, Class 1500, Class 2500 Lap Joint Flanges Manufacturer in India

  • Lap Joint Flange Tolerances & Weight Chart
  • ANSI B16.5 Lap Joint Flange Specifications
  • Why Choos Masiva Solutions
  • ASME B16.47 Lap Joint Flange Materials
  • Lap Joint Flange Manufacturing Process
  • Lap Joint Flange Application Industries
  • ASME B16.5 Lap Joint Flange Inspection
  • Lap Joint Flange Packing & Forwarding
  • Lap Joint Flange Export & Supply Country List
  • Lap Joint Flange Export & Supply City List
  • Lap Joint Flange Class 150 Dimensions
  • Lap Joint Flange Class 300 Dimensions
  • Lap Joint Flange Class 600 Dimensions
  • Lap Joint Flange Class 900 Dimensions
  • Lap Joint Flange Class 1500 Dimensions
  • Lap Joint Flange Class 2500 Dimensions

Stockists of Raised Face & Flat Face Lap Joint Flange in Duplex Steel, Super Duplex Steel, Stainless Steel, Nickel Alloy, Inconel, Hastelloy, Monel, Titaniun, Incoloy, Copper Nickel, Aluminium, Bronze, Alloy 20, 254 SMO, Mild Steel, Carbon Steel, Alloy Steel, Brass. Lap Joint Flange Exporters & Suppliers in South Africa, Malaysia, Singapore, UK, Philippines, Australia and Dubai, UAE.

Masiva Solutions company is the superior company that gives the Lapped joint Flanges. Our service is one of the simplest services which are liked by our customers. We make this position by continuously improving the standard of our product and update our techniques. We used the simplest and modern technique to manufacture our products. We especially specialize in the standard of material.

Sealing Face of lap joint or Loose Flange, for one more sort of flanges like weld neck flange or slip-on flange, they might be raised face or flat face or other sorts of sealing face. But the lap joint flange (Loose flange) only features a flat face, the stub end face is that the sealing face within the two-lap joint flanges connections, therefore the stub end should have equivalent dimensions because of the raised face standard. Lap joint Flanges use a stub end that’s welded to the pipe. a ring flange fits loosely around the stub end, permitting easy flange alignment of the bolt holes.

Tolerances of Flanges

Flange Weight Chart

ANSI / ASME B16.5 Lap Joint Flange Specifications

  •  Flange Size  ½” (15 NB) to 48″ (1200NB)
  •  Flange Class  150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40.
  •  Flange DIN  DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
  •  Flange BS  BS4504 , BS4504, BS1560, BS10
  •  Flange Standard  ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
  •  Flange Coating/Surface Treatment  Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
  •  Flange Connection Type  Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large, Tongue & Groove, Small Tongue & Groove
  •  Flange Face Type  Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
  •  Flange Dimensions  ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  •  Flange JIS  5K, 10K, 16K, 20K, 30K, 40K, 63K
  •  Flange UNI  6Bar 10Bar 16Bar 25Bar 40Bar
  •  Flange Coating  Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
  •  Production technique  Forged, Heat treated and machined
  •  Test Certificates  EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc
  •  Flange Test  Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
  •  Equipment  Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
  •  Flange Origin  Indian / West Europe / Japan / USA / Korean

Lap Joint Flanges Class 150 Dimensions

All dimensions are in “mm” unless noted otherwise. Dimensions of Class 150 Lap Joint Flanges as per ASME B16.5.

Nominal
Pipe Size		 Outside
diameter of
flange
(D)		 Thick of
flange
(B)		 Diameter of
Hub at base
(A)		 Length
thru Hub
(H)		 Dia of
bore
(ID)		 Fillet
radius
(r)		 No of
holes		 Dia of
holes
(L)		 Dia of
bolts		 Diam of
bolt circle
(K)		 Approx
weight
kg
1/2 88.9 11.2 30.2 15.7 22.9 3 4 15.7 1/2 60.5 0.5
3/4 98.6 12.7 38.1 15.7 28.2 3 4 15.7 1/2 69.9 1
1 108 14.2 49.3 17.5 35.1 3 4 15.7 1/2 79.2 1
1-1/4 117.3 15.7 58.7 20.6 43.7 4.8 4 15.7 1/2 88.9 1
1-1/2 127 17.5 65 22.4 50 6.4 4 15.7 1/2 98.6 1
2 152.4 19.1 77.7 25.4 62.5 7.9 4 19.1 5/8 120.7 2
2-1/2 177.8 22.4 90.4 28.4 75.4 7.9 4 19.1 5/8 139.7 3
3 190.5 23.9 108 30.2 91.4 9.7 4 19.1 5/8 152.4 4
3-1/2 215.9 23.9 122.2 31.8 104.1 9.7 8 19.1 5/8 177.8 5
4 228.6 23.9 134.9 33.3 116.8 11.2 8 19.1 5/8 190.5 6
5 254 23.9 163.6 36.6 144.5 11.2 8 22.4 3/4 215.9 7
6 279.4 25.4 192 39.6 171.5 12.7 8 22.4 3/4 241.3 9
8 342.9 28.4 246.1 44.5 222.3 12.7 8 22.4 3/4 298.5 14
10 406.4 30.2 304.8 49.3 277.4 12.7 12 25.4 7/8 362 20
12 482.6 31.8 365.3 55.6 328.2 12.7 12 25.4 7/8 431.8 29
14 533.4 35.1 400.1 79.2 360.2 12.7 12 28.4 1 476.3 48
16 596.9 36.6 457.2 87.4 411.2 12.7 16 28.4 1 539.8 64
18 635 39.6 505 96.8 462.3 12.7 20 31.8 1-1/8 577.9 73
20 698.5 42.9 558.8 103.1 514.4 12.7 20 31.8 1-1/8 635 88
24 812.8 47.8 663.4 111.3 616 12.7 20 35.1 1-1/4 749.3 125

Lap Joint Flanges Class 300 Dimensions

All dimensions are in “mm” unless noted otherwise. Dimensions of Class 300 Lap Joint Flanges as per ASME B16.5.

Nominal
Pipe Size		 Outside
diameter of
flange
(D)		 Thick of
flange
(B)		 Diameter of
Hub at base
(A)		 Length
thru Hub
(H)		 Dia of
bore
(ID)		 Fillet
radius
(r)		 No of
holes		 Dia of
holes
(L)		 Dia of
bolts		 Diam of
bolt circle
(K)		 Approx
weight
kg
1/2 95.3 14.2 38.1 22.4 22.9 3 4 15.7 1/2 66.5 1
3/4 117.3 15.7 47.8 25.4 28.2 3 4 19.1 5/8 82.6 1
1 124 17.5 53.8 26.9 35.1 3 4 19.1 5/8 88.9 1
1-1/4 133.4 19.1 63.5 26.9 43.7 4.8 4 19.1 5/8 98.6 2
1-1/2 155.4 20.6 69.9 30.2 50 6.4 4 22.4 3/4 114.3 3
2 165.1 22.4 84.1 33.3 62.5 7.9 8 19.1 5/8 127 3
2-1/2 190.5 25.4 100.1 38.1 75.4 7.9 8 22.4 3/4 149.4 5
3 209.6 28.4 117.3 42.9 91.4 9.7 8 22.4 3/4 168.1 6
3-1/2 228.6 30.2 133.4 44.5 104.1 9.7 8 22.4 3/4 184.2 8
4 254 31.8 146.1 47.8 116.8 11.2 8 22.4 3/4 200.2 10
5 279.4 35.1 177.8 50.8 144.5 11.2 8 22.4 3/4 235 13
6 317.5 36.6 206.2 52.3 171.5 12.7 12 22.4 3/4 269.7 18
8 381 41.1 260.4 62 222.3 12.7 12 25.4 7/8 330.2 26
10 444.5 47.8 320.5 95.3 277.4 12.7 16 28.4 1 387.4 41
12 520.7 50.8 374.7 101.6 328.2 12.7 16 31.8 1-1/8 450.9 64
14 584.2 53.8 425.5 111.3 360.2 12.7 20 31.8 1-1/8 514.4 86
16 647.7 57.2 482.6 120.7 411.2 12.7 20 35.1 1-1/4 571.5 113
18 711.2 60.5 533.4 130 462.3 12.7 24 35.1 1-1/4 628.7 134
20 774.7 63.5 587.2 139.7 514.4 12.7 24 35.1 1-1/4 685.8 168
24 914.4 69.9 701.5 152.4 616 12.7 24 41.1 1-1/4 812.8 249

Lap Joint Flanges Class 600 Dimensions

All dimensions are in “mm” unless noted otherwise. Dimensions of Class 600 Lap Joint Flanges as per ASME B16.5.

Nominal
Pipe Size		 Outside
diameter of
flange
(D)		 Thick of
flange
(B)		 Diameter of
Hub at base
(A)		 Length
thru Hub
(H)		 Dia of
bore
(ID)		 Fillet
radius
(r)		 No of
holes		 Dia of
holes
(L)		 Dia of
bolts		 Diam of
bolt circle
(K)		 Approx
weight
kg
1/2 95.3 14.2 38.1 22.4 22.9 3 4 15.7 1/2 66.5 1
3/4 117.3 15.7 47.8 25.4 28.2 3 4 19.1 5/8 82.6 1
1 124 17.5 53.8 26.9 35.1 3 4 19.1 5/8 88.9 2
1-1/4 133.4 20.6 63.5 28.4 43.7 4.8 4 19.1 5/8 98.6 2
1-1/2 155.4 22.4 69.9 31.8 50 6.4 4 22.4 3/4 114.3 3
2 165.1 25.4 84.1 36.6 62.5 7.9 8 19.1 5/8 127 4
2-1/2 190.5 28.4 100.1 41.1 75.4 7.9 8 22.4 3/4 149.4 5
3 209.6 31.8 117.3 46 91.4 9.7 8 22.4 3/4 168.1 7
3-1/2 228.6 35.1 133.4 49.3 104.1 9.7 8 25.4 7/8 184.2 9
4 273.1 38.1 152.4 53.8 116.8 11.2 8 25.4 7/8 215.9 16
5 330.2 44.5 189 60.5 144.5 11.2 8 28.4 1 266.7 28
6 355.6 47.8 222.3 66.5 171.5 12.7 12 28.4 1 292.1 35
8 419.1 55.6 273.1 76.2 222.3 12.7 12 31.8 1-1/8 349.3 50
10 508 63.5 342.9 111.3 277.4 12.7 16 35.1 1-1/4 431.8 77
12 558.8 66.5 400.1 117.3 328.2 12.7 20 35.1 1-1/4 489 91
14 603.3 69.9 431.8 127 360.2 12.7 20 38.1 1-3/8 527.1 113
16 685.8 76.2 495.3 139.7 411.2 12.7 20 41.1 1-1/2 603.3 166
18 743 82.6 546.1 152.4 462.3 12.7 20 44.5 1-5/8 654.1 197
20 812.8 88.9 609.6 165.1 514.4 12.7 24 44.5 1-5/8 723.9 259
24 939.8 101.6 717.6 184.2 616 12.7 24 50.8 1-7/8 838.2 367

Lap Joint Flanges Class 900 Dimensions

All dimensions are in “mm” unless noted otherwise. Dimensions of Class 900 Lap Joint Flanges as per ASME B16.5.

Nominal
Pipe Size		 Outside
diameter of
flange
(D)		 Thick of
flange
(B)		 Diameter of
Hub at base
(A)		 Length
thru Hub
(H)		 Dia of
bore
(ID)		 Fillet
radius
(r)		 No of
holes		 Dia of
holes
(L)		 Dia of
bolts		 Diam of
bolt circle
(K)		 Approx
weight
kg
1/2 120.7 22.4 38.1 31.8 22.9 3 4 22.4 3/4 82.6 2
3/4 130 25.4 44.5 35.1 28.2 3 4 22.4 3/4 88.9 2
1 149.4 28.4 52.3 41.1 35.1 3 4 25.4 7/8 101.6 4
1-1/4 158.8 28.4 63.5 41.1 43.7 4.8 4 25.4 7/8 111.3 4
1-1/2 177.8 31.8 69.9 44.5 50 6.4 4 28.4 1 124 5
2 215.9 38.1 104.6 57.2 62.5 7.9 8 25.4 7/8 165.1 11
2-1/2 244.3 41.1 124 63.5 75.4 7.9 8 28.4 1 190.5 16
3 241.3 38.1 127 53.8 91.4 9.7 8 25.4 7/8 190.5 11
4 292.1 44.5 158.8 69.9 116.8 11.2 8 31.8 1-1/8 235 23
5 349.3 50.8 190.5 79.2 144.5 11.2 8 35.1 1-1/4 279.4 37
6 381 55.6 235 85.9 171.5 12.7 12 31.8 1-1/8 317.5 48
8 469.9 63.5 298.5 114.3 222.3 12.7 12 38.1 1-3/8 393.7 86
10 546.1 69.9 368.3 127 277.4 12.7 16 38.1 1-3/8 469.9 125
12 609.6 79.2 419.1 142.7 328.2 12.7 20 38.1 1-3/8 533.4 168
14 641.4 85.9 450.9 155.4 360.2 12.7 20 41.1 1-1/2 558.8 188
16 704.9 88.9 508 165.1 411.2 12.7 20 44.5 1-5/8 616 211
18 787.4 101.6 565.2 190.5 462.3 12.7 20 50.8 1-7/8 685.8 295
20 857.3 108 622.3 209.6 514.4 12.7 20 53.8 2 749.3 367
24 1041.4 139.7 749.3 266.7 616 12.7 20 66.5 2-1/2 901.7 703

Lap Joint Flanges Class 1500 Dimensions

All dimensions are in “mm” unless noted otherwise. Dimensions of Class 1500 Lap Joint Flanges as per ASME B16.5.

Nominal
Pipe Size		 Outside
diameter of
flange
(D)		 Thick of
flange
(B)		 Diameter of
Hub at base
(A)		 Length
thru Hub
(H)		 Dia of
bore
(ID)		 Fillet
radius
(r)		 No of
holes		 Dia of
holes
(L)		 Dia of
bolts		 Diam of
bolt circle
(K)		 Approx
weight
kg
1/2 120.7 22.4 38.1 31.8 22.9 3 4 22.4 3/4 82.6 2
3/4 130 25.4 44.5 35.1 28.2 3 4 22.4 3/4 88.9 2
1 149.4 28.4 52.3 41.1 35.1 3 4 25.4 7/8 101.6 4
1-1/4 158.8 28.4 63.5 41.1 43.7 4.8 4 25.4 7/8 111.3 4
1-1/2 177.8 31.8 69.9 44.5 50 6.4 4 28.4 1 124 5
2 215.9 38.1 104.6 57.2 62.5 7.9 8 25.4 7/8 165.1 11
2-1/2 244.3 41.1 124 63.5 75.4 7.9 8 28.4 1 190.5 16
3 266.7 47.8 133.4 73.2 91.4 9.7 8 31.8 1-1/8 203.2 21
4 311.2 53.8 162.1 90.4 116.8 11.2 8 35.1 1-1/4 241.3 34
5 374.7 73.2 196.9 104.6 144.5 11.2 8 41.1 1-1/2 292.1 64
6 393.7 82.6 228.6 119.1 171.5 12.7 12 38.1 1-3/8 317.5 77
8 482.6 91.9 292.1 142.7 222.3 12.7 12 44.5 1-5/8 393.7 129
10 584.2 108 368.3 177.8 277.4 12.7 12 50.8 1-7/8 482.6 220
12 673.1 124 450.9 218.9 328.2 12.7 16 53.8 2 571.5 286
14 749.3 133.4 495.3 241.3 360.2 12.7 16 60.5 2-1/4 635 404
16 825.5 146.1 552.5 260.4 411.2 12.7 16 66.5 2-1/2 704.9 476
18 914.4 162.1 596.9 276.4 462.3 12.7 16 73.2 2-3/4 774.7 669
20 984.3 177.8 641.4 292.1 514.4 12.7 16 79.2 3 831.9 805
24 1168.4 203.2 762 330.2 616 12.7 16 91.9 3-1/2 990.6 1281

Lap Joint Flanges Class 2500 Dimensions

All dimensions are in “mm” unless noted otherwise. Dimensions of Class 2500 Lap Joint Flanges as per ASME B16.5.

Nominal
Pipe Size		 Outside
diameter of
flange
(D)		 Thick of
flange
(B)		 Diameter of
Hub at base
(A)		 Length
thru Hub
(H)		 Dia of
bore
(ID)		 Fillet
radius
(r)		 No of
holes		 Dia of
holes
(L)		 Dia of
bolts		 Diam of
bolt circle
(K)		 Approx
weight
kg
1/2 133.4 30.2 42.9 39.6 22.9 3 4 22.4 3/4 88.9 3
3/4 139.7 31.8 50.8 42.9 28.2 3 4 22.4 3/4 95.3 4
1 158.8 35.1 57.2 47.8 35.1 3 4 25.4 7/8 108 5
1-1/4 184.2 38.1 73.2 52.3 43.7 4.8 4 28.4 1 130 7
1-1/2 203.2 44.5 79.2 60.5 50 6.4 4 31.8 1-1/8 146.1 10
2 235 50.8 95.3 69.9 62.5 7.9 8 28.4 1 171.5 17
2-1/2 266.7 57.2 114.3 79.2 75.4 7.9 8 31.8 1-1/8 196.9 24
3 304.8 66.5 133.4 91.9 91.4 9.7 8 35.1 1-1/4 228.6 36
4 355.6 76.2 165.1 108 116.8 11.2 8 41.1 1-1/2 273.1 54
5 419.1 91.9 203.2 130 144.5 11.2 8 47.8 1-3/4 323.9 93
6 482.6 108 235 152.4 171.5 12.7 8 53.8 2 368.3 143
8 552.5 127 304.8 177.8 222.3 12.7 12 53.8 2 438.2 213
10 673.1 165.1 374.7 228.6 277.4 12.7 12 66.5 2-1/2 539.8 408
12 762 184.2 441.5 254 328.2 12.7 12 73.2 2-3/4 619.3 499

Why Masiva Solutions

  • Quality Products:
    • Raw Materials are adeuately tested
    • Conformaity to ASTM, ASME, DIN, EN, JIS.
    • Marking, Heat Number. Specificatios
    • 100% Radiography Test Report
    • Third Party Inspection, Buyer Inspection
  • Value Added Services:
    • Epoxy & fbe coating
    • Hot dipped galvanizing.
    • Sand blasting
    • Electro polish or other special finishes
    • Custom shape cutting, fabrication services
    • Threading, soldering
  • Manufacturing Expertise:
    • Custom size flanges
    • High quality Industrial Flanges manufacturer.
    • Accurate dimensions
    • Products with unifrom wall thickness
    • We use top quality raw materials
    • Over 10 years of manufacturing experience

Lap Joint Flanges Materials

Most common materials used in the production of Lap Joint Flanges are Carbon Steel, Stainless Steel, Duplex Steel, Nickel Alloys. Complete list of grades, materials, and manufacturing standards are given below.

Carbon Steel Lap Joint Flanges:

  • High Temperature Carbon Steel ASTM A105: A53, A106, API 5L
  • Low Temperature Carbon Steel ASTM A350: LF1, LF2, LF3
  • High Yield Carbon Steel ASTM A694: F42, F52, F60, F65

Alloy Steel Lap Joint Flanges:

  • Alloy Steel ASTM A182: F5, F9, F11, F22, F1, F5/F5a, F91

Stainless Steel Lap Joint Flanges:

  • Stainless Steel ASTM A182: F304, F304H, F304L, F304N, F304LN, F309H, F310, F310H, F310MoLN, F316, F316H, F316L, F316N, F316LN, F316Ti, F317, F317L, F321, F321H, F347, F347H, F348, F348H, 904L

Duplex Steel Lap Joint Flanges:

  • Duplex Steel ASTM A182: Duplex 2205 (UNS S31803 – UNS S32205)
  • Super Duplex ASTM A182: UNS S32750 – UNS S32760

Nickel Alloy Lap Joint Flanges:

  • ASTM B160: Nickel 200 Flange | Nickel 201
  • ASTM B166: Inconel 600 Flange
  • ASTM B564: Inconel 625 Flange
  • ASTM B425: Incoloy 800 Flange
  • ASTM B564: Incoloy 825 Flange
  • ASTM B564: Monel K400 Flange | Monel 400
  • ASTM B564: Hastelloy C276 Flange | Hastelloy B, Hastelloy D, Hastelloy C-276, Hastelloy G

ANSI B16.5 Lap Joint Flanges Manufacturing Process

ASME B16.47 Lap Joint Flanges Application Industries

  •  Refineries
  •  Food Processing & Dairy
  •  Oil and Gas Industry
  •  Off-Shore Oil Drilling Companies
  •  Pharmaceutical Equipment
  •  Pulp & Paper Industry
  •  Power Generation
  •  Specialty Chemicals
  •  Sea Water Equipment
  •  Gas Processing
  •  Chemical Equipment
  •  Heat Exchangers
  •  Petrochemicals
  •  Pharmaceuticals
  •  Condensers

ASME B16.47 / ANSI B16.5 Lap Joint Flanges Inspection

Our qualified inspection engineer performed inspection on Lap Joint Flanges based on reference standards of ASME B31.1, B31.3, B16.5, ASME II , V , VIII , IX , DIN, AS/NZ standards etc. A visual test performed to identify surface porosity, cracks, and open structure defects. A dimensional inspection performed to confirm that the different types of flange, in this case its Lap Joint Flange, Raised Face Lap Joint Flange, Flat Face Lap Joint Flange, etc. are manufactured according to the ASME Specification, that specifies the dimensions and indicates the design tolerances. A tensile test is conducted to test the yield strength, the tensile strength, and the elongation restrictions. A hardness test is conducted to check micro-hardness and surface hardness to confirm the acid environment performance and material performance. Magnetic particle inspection is performed to detect locating surface and near subsurface discontinuities in ferromagnetic materials, if some surface cracks, folds, thrust fault, pit or gas hole.



ANSI B16.5 Lap Joint Flanges Packing & Forwarding

We follow the packing procedure of Lap Joint Flanges to insure damage free delivery of BS10 Lap Joint Flange to our valuable customers in India and overseas. usually the packing way include wooden pallet, wooden box, iron & steel pallet, iron & steel cage etc. Because of the normal wooden pallets or wooden boxes have to do fumigation treatment, we choose plywood box or case or plywood pallet to pack Series A and Series B Lap Joint Flange without fumigation treatment. Whatever plywood or iron & steel packing way, we make sure that it must be strong, seaworthy, waterproof. All details of ASME B16.5 Lap Joint Flange are also stick with flanges packing so that it can be easy to understand and we insure that packing can ease the process of loading and unloading of goods.



ASME B16.5 Lap Joint Flanges Export & Supply to below mentioned Countries

MIDDLE EAST: Saudi Arabia (KSA), United Arab Emirates (UAE), Iran, Iraq, Jordan, Qatar, Bahrain, Oman, Kuwait, Turkey, Yemen, Syria, Cyprus.
ASIA: Malaysia, India, Taiwan, Cambodia, Singapore, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Myanmar.
SOUTH AMERICA: Venezuela, Argentina, Bolivia, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Brazil, Chile.
AFRICA: South Africa, Nigeria, Algeria, Angola, Libya, Egypt, Gabon, Sudan, Equatorial Guinea, The Republic Of Congo.
NORTH AMERICA: USA, Canada, Mexico, Panama, Costa Rica, Puerto Rico, Trinidad And Tobago, Jamaica, Bahamas, Denmark.
EUROPE: UK, Netherlands, Russia, Norway, Germany, France, Italy, Spain, Ukraine, Belgium, Greece, Hungary, Albania, Austria, Finland, Ireland, Croatia, Slovenia, Malta, Switzerland, Slovakia, Czech Republic, Portugal.

ASME B16.5 Lap Joint Flanges Export & Supply to below Mentioned Cities

Mumbai, Thane, Navi Mumbai, Pune, New Delhi, Secunderabad, Gimhae-si, Haryana, Colombo, Lahore, Thiruvananthapuram, Milan, Moscow, Dallas, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Petaling Jaya, Ernakulam, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, Vung Tau, Al Khobar, Atyrau, Lagos, Ulsan, Faridabad, Houston, Hanoi, Toronto, Hong Kong, Rajkot, Bengaluru, Chennai, Surat, New York, Caracas, Howrah, Sydney, Ahvaz, Karachi, Algiers, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, Chiyoda, Dubai, Seoul, Hyderabad, Singapore, Doha, Jeddah, Manama, Montreal, Brisbane, Los Angeles, Ankara, Ho Chi Minh City, Bhopal, Mexico City, Ludhiana, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, London, Muscat, Edmonton, Busan, Visakhapatnam, Bogota, Melbourne, Madrid, La Victoria, Granada, Courbevoie, Al Jubail, Port-of-Spain.





Category:

Description

Lap Joint Flanges Manufacturer in Italy

Masiva Metal is a trusted Lap Joint Flanges manufacturer in Italy, offering high-quality flanges in various materials, sizes, pressure classes and specifications for industrial applications.

Lap Joint Flanges Manufacturer in Belgium

Masiva Metal is a reliable Lap Joint Flanges manufacturer in Belgium, providing quality flanges in different materials, sizes, pressure classes and specifications for industrial requirements.

Lap Joint Flanges Manufacturer in UAE

Masiva Metal is a trusted Lap Joint Flanges manufacturer in UAE, offering durable flanges in various materials, sizes, pressure classes and specifications for industrial applications.

Lap Joint Flanges Manufacturer in Spain

Masiva Metal is an experienced Lap Joint Flanges manufacturer in Spain, offering quality industrial flanges in different materials, sizes, pressure classes and specifications.

Lap Joint Flanges Manufacturer in Germany

Masiva Metal is a trusted Lap Joint Flanges manufacturer in Germany, producing high-quality flanges in multiple materials, sizes, pressure classes and specifications for industrial applications.

Lap Joint Flanges Manufacturer in South Korea

Masiva Metal is a reliable Lap Joint Flanges manufacturer in South Korea, offering precision-engineered flanges in different materials, sizes, pressure classes and specifications for industrial use.

Lap Joint Flanges Manufacturer in Vietnam

Masiva Metal is a trusted Lap Joint Flanges manufacturer in Vietnam, offering durable industrial flanges in various materials, sizes, pressure classes and specifications.

Lap Joint Flanges Manufacturer in Philippines

Masiva Metal is a reliable Lap Joint Flanges manufacturer in Philippines, offering quality flanges in different materials, sizes, pressure classes and specifications for industrial applications.

Lap Joint Flanges Manufacturer in Saudi Arabia

Masiva Metal is a trusted Lap Joint Flanges manufacturer in Saudi Arabia, providing quality industrial flanges in multiple materials, sizes, pressure classes and specifications.

Lap Joint Flanges Supplier in Italy

Masiva Metal is a reliable Lap Joint Flanges supplier in Italy, providing quality industrial flanges in multiple materials, sizes, pressure ratings and specifications.

Lap Joint Flanges Supplier in Belgium

Masiva Metal supplies Lap Joint Flanges in Belgium with reliable quality, varied materials, sizes, pressure ratings and specifications for industrial applications.

Lap Joint Flanges Supplier in UAE

Masiva Metal is a reliable Lap Joint Flanges supplier in UAE, offering quality flanges in multiple materials, sizes, pressure ratings and specifications for industrial needs.

Lap Joint Flanges Supplier in Spain

Masiva Metal supplies Lap Joint Flanges in Spain, providing reliable flange solutions in various materials, sizes, pressure ratings and specifications.

Lap Joint Flanges Supplier in Germany

Masiva Metal is a reliable Lap Joint Flanges supplier in Germany, offering quality industrial flanges in various materials, sizes, pressure ratings and specifications.

Lap Joint Flanges Supplier in South Korea

Masiva Metal supplies Lap Joint Flanges in South Korea with quality materials, varied sizes, pressure ratings and specifications for demanding industrial applications.

Lap Joint Flanges Supplier in Vietnam

Masiva Metal is a reliable Lap Joint Flanges supplier in Vietnam, providing quality flanges in multiple materials, sizes, pressure ratings and specifications.

Lap Joint Flanges Supplier in Philippines

Masiva Metal supplies Lap Joint Flanges in the Philippines, offering reliable flange solutions in various materials, sizes, pressure ratings and specifications.

Lap Joint Flanges Supplier in Saudi Arabia

Masiva Metal is a reliable Lap Joint Flanges supplier in Saudi Arabia, offering durable flanges in various materials, sizes, pressure ratings and specifications for industrial requirements.

Customer Reviews

No reviews yet.

Related products
