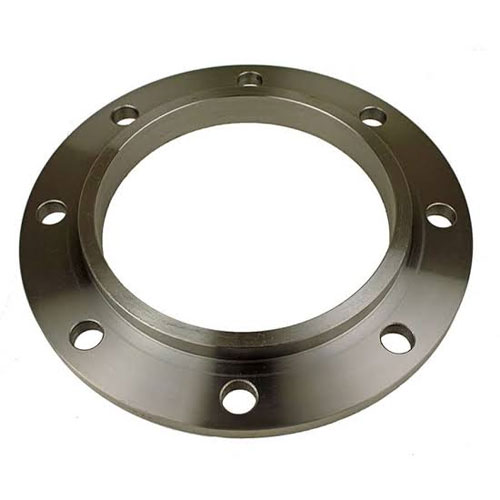

AWWA Flange

AWWA Flange Manufacturer

AWWA Standard Flanges Suppliers, ASME B16.5 / ANSI B16.47 AWWA Flanges, AWWA C207 Flanges, AWWA C207 Class E Blind Flange, AWWA C207 Class D Slip-on Flange Price List. AWWA C207 Class E-Hub Flange Material, AWWA C207 Class B Flanges, AWWA C207 Class F Flanges Manufacturer in India.

  • AWWA Flange Tolerances & Weight Chart
  • AWWA Flange Specifications
  • Why Choos Masiva Solutions
  • AWWA Flange Materials
  • AWWA Flange Manufacturing Process
  • AWWA Flange Application Industries
  • AWWA Flange Inspection
  • AWWA Flange Packing & Forwarding
  • AWWA Flange Export & Supply Country List
  • AWWA Flange Export & Supply City List
  • AWWA C207 Flange Class 125LW Class B, D Dimensions
  • AWWA C207 Class 125 LW Class E Flange Dimensions
  • AWWA C207 Class B Ring Flange (86 PSI*) Dimensions
  • AWWA C207 Class D Ring Flange (175-150 PSI) Dimensions
  • AWWA C207 Class D Hub Flange (175-150 PSI*) Dimensions
  • AWWA Class E Steel Ring Flange (275 PSI*) Dimensions
  • AWWA C207 Class E Hub Flange (275 PSI*) Dimensions
  • AWWA C207 Class F Ring Flange (300 PSI*) Dimensions

Stockists of AWWA Flange in Duplex Steel, Super Duplex Steel, Stainless Steel, Nickel Alloy, Inconel, Hastelloy, Monel, Titanium, Incoloy, Copper Nickel, Aluminium, Bronze, Alloy 20, 254 SMO, Mild Steel, Carbon Steel, Alloy Steel, Brass. AWWA Flanges Exporters & Suppliers in South Africa, Malaysia, Singapore, UK, Philippines, Australia and Dubai, UAE.

We are a Manufacturer, Supplier, and Exporter of AWWA Flanges. AWWA Flanges are commonly utilized in waterworks, wastewater, slurry, plant piping, or other light-duty applications generally requiring pressures of but 300 psi. Pressure ratings for AWWA flanges range from the category B flange rated at 86 psi to Class F flanges, both rated at 300 psi.

The use of AWWA flange has long been accepted for concrete piping systems, and more recently with polyethylene piping, as a backup ring. When used with a low-pressure piping system, AWWA flange can frequently offer the user cost saving over commonly forged flange which is generally designed for higher pressure applications like oil, steam, chemical.

The American Water Work Association was founded on March 29th, 1881. They worked together to identify uniform requirements for the waterwork system. the primary ANSI/AWWA C207 steel pipe flange specification was officially adopted in 1955. The AWWA C207 specifications cover steel ring-type blind flanges and slip-on flanges.

Tolerances of Flanges

Flange Weight Chart

AWWA Flanges Specifications

  • Flange Size  ½” (15 NB) to 48″ (1200NB)
  • Flange Class  150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40.
  • Flange DIN  DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
  • Flange BS  BS4504 , BS4504, BS1560, BS10
  • Flange Standard  ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
  • Flange Coating/Surface Treatment  Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
  • Flange Connection Type  Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large, Tongue & Groove, Small Tongue & Groove
  • Flange Face Type  Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
  • Flange Dimensions  ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • Flange JIS  5K, 10K, 16K, 20K, 30K, 40K, 63K
  • Flange UNI  6Bar 10Bar 16Bar 25Bar 40Bar
  • Flange Coating  Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
  • Production technique  Forged, Heat treated and machined
  • Test Certificates  EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report.
  • Flange Test  Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
  • Equipment  Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
  • Flange Origin  Indian / West Europe / Japan / USA / Korean

AWWA C207 FLANGE CLASS 125LW CLASS B, D Dimensions

AWWA C207 CLASS 125 LW CLASS E FLANGE Dimensions

AWWA C207 CLASS B RING FLANGE (86 PSI*) Dimensions

Nom Size Drilling Thickness Weight
OD Bolt Circle Hole Dia No. Holes Slip-On Blind Bore Slip-on Blind
A C T T B
4 9.00 7.50 0.750 8 0.625 0.625 4.57 8 11
5 10.00 8.50 0.875 8 0.625 0.625 5.66 9 14
6 11.00 9.50 0.875 8 0.688 0.688 6.72 11 19
8 13.50 11.75 0.875 8 0.688 0.688 8.72 15 28
10 16.00 14.25 1.000 12 0.688 0.688 10.88 19 39
12 19.00 17.00 1.000 12 0.688 0.719 12.88 28 58
14 21.00 18.75 1.125 12 0.688 0.791 14.19 34 78
16 23.50 21.25 1.125 16 0.688 0.892 16.19 41 110
18 25.00 22.75 1.250 16 0.688 0.950 18.19 41 132
20 27.50 25.00 1.250 20 0.688 1.040 20.19 49 175
22 29.50 27.25 1.375 20 0.750 1.132 22.19 57 219
24 32.00 29.50 1.375 20 0.750 1.216 24.19 67 277
26 34.25 31.75 1.375 24 0.812 1.307 26.19 80 341
28 36.50 34.00 1.375 28 0.875 1.398 28.19 94 414
30 38.75 36.00 1.375 28 0.875 1.477 30.19 105 493
32 41.75 38.50 1.625 28 0.936 1.581 32.19 132 613
34 43.75 40.50 1.625 32 0.938 1.661 34.19 137 707
36 46.00 42.75 1.625 32 1.000 1.751 36.19 161 824
38 48.75 45.25 1.625 32 1.000 1.853 38.19 185 980
40 50.75 47.25 1.625 36 1.000 1.933 40.19 193 1108
42 53.00 49.50 1.625 36 1.125 2.023 42.19 234 1264
44 55.25 51.75 1.625 40 1.125 2.114 44.19 249 1436
46 57.25 53.75 1.625 40 1.125 2.194 46.19 260 1600
48 59.50 56.00 1.625 44 1.250 2.285 48.19 306 1800
50 61.75 58.25 1.875 44 1.250 2.377 50.19 317 2017
52 64.00 60.50 1.875 44 1.250 2.468 52.19 339 2249
54 66.25 62.75 1.875 44 1.375 2.559 54.19 397 2499
60 73.00 69.25 1.875 52 1.500 2.820 60.19 508 3344
66 80.00 76.00 1.875 52 1.625 3.092 66.19 664 4403
72 86.50 82.50 1.875 60 1.750 3.353 72.19 802 5582
78 93.00 89.00 2.125 64 2.000 …….. 78.19 1000 ……..
84 99.75 95.50 2.125 64 2.000 …….. 84.19 1145 ……..
90 106.50 102.00 2.438 68 2.250 …….. 90.19 1404 ……..
96 113.25 108.50 2.438 68 2.250 …….. 96.19 1586 ……..
102 120.00 114.50 2.688 72 2.500 …….. 102.19 1912 ……..
108 126.75 120.75 2.688 72 2.500 …….. 108.19 2136 ……..
114 133.50 126.75 2.938 76 2.750 …….. 114.19 2525 ……..
120 140.25 132.75 2.938 76 2.750 …….. 120.19 2795 ……..
126 147.00 139.25 3.188 80 3.000 …….. 126.19 3252 ……..
132 153.75 145.75 3.188 80 3.000 …….. 132.19 3572 ……..
138 160.50 152.00 3.438 84 3.250 …….. 138.19 4101 ……..
144 167.25 158.25 3.438 84 3.250 …….. 144.19 4475 ……..

AWWA C207 CLASS D RING FLANGE (175-150 PSI) Dimensions

Nom Size Drilling Thickness Weight
OD Bolt Circle Hole Dia No Holes Slip-On Blind Bore Slip-on Blind
A C T T B
4 9.00 7.50 0.750 8 0.625 0.625 4.57 8 11
5 10.00 8.50 0.875 8 0.625 0.650 5.66 9 14
6 11.00 9.50 0.875 8 0.688 0.693 6.72 11 19
8 13.50 11.75 0.875 8 0.688 0.812 8.72 15 33
10 16.00 14.25 1.000 12 0.688 0.953 10.88 19 54
12 19.00 17.00 1.000 12 0.812 1.117 12.88 33 90
14 21.00 18.75 1.125 12 0.938 1.133 14.19 47 111
16 23.50 21.25 1.125 16 1.000 1.265 16.19 60 155
18 25.00 22.75 1.250 16 1.062 1.331 18.19 64 185
20 27.50 25.00 1.250 20 1.125 1.448 20.19 79 244
22 29.50 27.25 1.375 20 1.188 1.568 22.19 90 304
24 32.00 29.50 1.375 20 1.250 1.661 24.19 112 378
26 34.25 31.75 1.375 24 1.312 1.786 26.19 129 466
28 36.50 34.00 1.375 28 1.312 1.906 28.19 141 565
30 38.75 36.00 1.375 28 1.375 2.008 30.19 164 671
32 41.75 38.50 1.625 28 1.500 2.150 32.19 211 834
34 43.75 40.50 1.625 32 1.500 2.252 34.19 220 959
36 46.00 42.75 1.625 32 1.625 2.370 36.19 261 1116
38 48.75 45.25 1.625 32 1.625 2.506 38.19 301 1325
40 50.75 47.25 1.625 36 1.625 2.609 40.19 313 1438
42 53.00 49.50 1.625 36 1.750 2.729 42.19 364 1706
44 55.25 51.75 1.625 40 1.750 2.849 44.19 387 1935
46 57.25 53.75 1.625 40 1.750 2.952 46.19 404 2153
48 59.50 56.00 1.625 44 1.875 3.072 48.19 460 2420
50 61.75 58.25 1.875 44 2.000 3.196 50.19 507 2712
52 64.00 60.50 1.875 44 2.000 3.315 52.19 542 3021
54 66.25 62.75 1.875 44 2.125 3.435 54.19 614 3355
60 73.00 69.25 1.875 52 2.250 3.779 60.19 763 4481
66 80.00 76.00 1.875 52 2.500 4.136 66.19 1021 5890
72 86.50 82.50 1.875 60 2.625 4.480 72.19 1203 7458
78 93.00 89.00 2.125 64 2.750 …….. 78.19 1374 ……..
84 99.75 95.50 2.125 64 2.875 …….. 84.19 1646 ……..
90 106.50 102.00 2.438 68 3.000 …….. 90.19 1872 ……..
96 113.25 108.50 2.438 68 3.250 …….. 96.19 2291 ……..
102 120.00 114.50 2.688 72 3.250 …….. 102.19 2485 …….
108 126.75 120.75 2.688 72 3.375 …….. 108.19 2884 ……..
114 133.50 126.75 2.938 76 3.500 …….. 114.19 3214 ……..
120 140.25 132.75 2.938 76 3.500 …….. 120.19 3558 ……..
126 147.00 139.25 3.188 80 3.750 …….. 126.19 4065 ……..
132 153.75 145.75 3.188 80 3.875 …….. 132.19 4614 …….
138 160.50 152.00 3.438 84 4.000 …….. 138.19 5047 ……..
144 167.25 158.25 3.438 84 4.125 …….. 144.19 5680 ……..

AWWA C207 CLASS D HUB FLANGE (175-150 PSI*) Dimensions

Nom Size Drilling
OD Weight Thickness Overall Thickness Bore Dia at Base Bolt  Circle Hole Dia No. Holes
A T L B E C
4 9.00 7 0.500 0.875 4.57 5.312 7.50 0.750 8
5 10.00 9 0.562 1.250 5.66 6.312 8.50 0.875 8
6 11.00 11 0.562 1.250 6.72 7.562 9.50 0.875 8
8 13.50 15 0.562 1.250 8.72 9.688 11.75 0.875 8
10 16.00 22 0.688 1.250 10.88 12.000 14.25 1.000 12
12 19.00 33 0.688 1.250 12.88 14.375 17.00 1.000 12
14 21.00 43 0.750 1.250 14.19 15.750 18.75 1.125 12
16 23.50 52 0.750 1.250 16.19 18.000 21.25 1.125 16
18 25.00 52 0.750 1.250 18.19 19.875 22.75 1.250 16
20 27.50 61 0.750 1.250 20.19 22.000 25.00 1.250 20
22 29.50 92 1.000 1.750 22.19 24.250 27.25 1.375 20
24 32.00 105 1.000 1.750 24.19 26.125 29.50 1.375 20
26 34.25 119 1.000 1.750 26.19 28.500 31.75 1.375 24
28 36.50 130 1.000 1.750 28.19 30.500 34.00 1.375 28
30 38.75 144 1.000 1.750 30.19 32.500 36.00 1.375 28
32 41.75 182 1.125 1.750 32.19 34.750 38.50 1.625 28
34 43.75 191 1.125 1.750 34.19 36.750 40.50 1.625 32
36 46.00 207 1.125 1.750 36.19 38.750 42.75 1.625 32
38 48.75 237 1.125 1.750 38.19 40.750 45.25 1.625 32
40 50.75 249 1.125 1.750 40.19 43.000 47.25 1.625 36
42 53.00 287 1.250 1.750 42.19 45.000 49.50 1.625 36
44 55.25 334 1.250 2.250 44.19 47.000 51.75 1.625 40
46 57.25 348 1.250 2.250 46.19 49.000 53.75 1.625 40
48 59.50 407 1.375 2.500 48.19 51.000 56.00 1.625 44
50 61.75 421 1.375 2.500 50.19 53.000 58.25 1.875 44
52 64.00 448 1.375 2.500 52.19 55.000 60.50 1.875 44
54 66.25 475 1.375 2.500 54.19 57.000 62.75 1.875 44
60 73.00 605 1.500 2.750 60.19 63.000 69.25 1.875 52
66 80.00 718 1.500 2.750 66.19 69.000 76.00 1.875 52
72 86.50 803 1.500 2.750 72.19 75.000 82.50 1.875 60
78 93.00 1010 1.750 3.000 78.19 81.250 89.00 2.125 64
84 99.75 1160 1.750 3.000 84.19 87.500 95.50 2.125 64
90 106.50 1430 2.000 3.250 90.19 93.750 102.00 2.438 68
96 113.25 1618 2.000 3.250 96.19 100.000 108.50 2.438 68

AWWA CLASS E STEEL RING FLANGE (275 PSI*) Dimensions

Nom Size Drilling Thickness Weight
OD Bolt  Circle Hole  Dia No. Holes Slip-On Blind Bore Slip-on Blind
A C T T B
4 9.00 7.50 0.750 8 1.125 1.125 4.57 14 20
5 10.00 8.50 0.875 8 1.188 1.188 5.66 16 26
6 11.00 9.50 0.875 8 1.313 1.313 6.72 20 35
8 13.50 11.75 0.875 8 1.500 1.500 8.72 33 61
10 16.00 14.25 1.000 12 1.563 1.563 10.88 44 89
12 19.00 17.00 1.000 12 1.750 1.750 12.88 71 141
14 21.00 18.75 1.125 12 1.875 1.875 14.19 94 184
16 23.50 21.25 1.125 16 2.000 2.000 16.19 120 246
18 25.00 22.75 1.250 16 2.125 2.125 18.19 127 296
20 27.50 25.00 1.250 20 2.375 2.375 20.19 168 400
22 29.50 27.25 1.375 20 2.500 2.500 22.19 189 484
24 32.00 29.50 1.375 20 2.625 2.625 24.19 234 598
26 34.25 31.75 1.375 24 2.750 2.750 26.19 270 718
28 36.50 34.00 1.375 28 2.750 2.750 28.19 297 815
30 38.75 36.00 1.375 28 2.875 2.875 30.19 344 961
32 41.75 38.50 1.625 28 3.000 3.000 32.19 422 1163
34 43.75 40.50 1.625 32 3.000 3.050 34.19 441 1299
36 46.00 42.75 1.625 32 3.125 3.209 36.19 502 1511
38 48.75 45.25 1.625 32 3.125 3.394 38.19 580 1795
40 50.75 47.25 1.625 36 3.250 3.533 40.19 626 2025
42 53.00 49.50 1.625 36 3.375 3.695 42.19 701 2309
44 55.25 51.75 1.625 40 3.375 3.857 44.19 747 2715
46 57.25 53.75 1.625 40 3.438 3.997 46.19 794 2813
48 59.50 56.00 1.625 44 3.500 4.159 48.19 858 3276
50 61.75 58.25 1.875 44 3.500 4.327 50.19 887 3671
52 64.00 60.50 1.875 44 3.625 4.489 52.19 982 4091
54 66.25 62.75 1.875 44 3.750 4.651 54.19 1083 4542
60 73.00 69.25 1.875 52 3.875 5.116 60.19 1313 6066
66 80.00 76.00 1.875 52 4.250 5.601 66.19 1736 7976
72 86.50 82.50 1.875 60 4.375 6.066 72.19 2005 10099
78 93.00 89.00 2.125 64 4.750 …….. 78.19 2374 ……..
84 99.75 95.50 2.125 64 4.750 …….. 84.19 2719 ……..
90 106.50 102.00 2.438 68 5.125 …….. 90.19 3197 ……..
96 113.25 108.50 2.438 68 5.125 …….. 96.19 3613 ……..
102 120.00 114.50 2.688 72 5.500 …….. 102.19 4206 ……..
108 126.75 120.75 2.688 72 5.500 …….. 108.19 4700 ……..
114 133.50 126.75 2.938 76 5.875 …….. 114.19 5395 ……..
120 140.25 132.75 2.938 76 5.875 …….. 120.19 5972 ……..
126 147.00 139.25 3.188 80 6.250 …….. 126.19 6775 ……..
132 153.75 145.75 3.188 80 6.250 …….. 132.19 7442 ……..
138 160.50 152.00 3.438 84 6.750 …….. 138.19 8517 ……..
144 167.25 158.25 3.438 84 6.750 …….. 144.19 9295 ……..

AWWA C207 CLASS E HUB FLANGE (275 PSI*) Dimensions

Nom Size Drilling
OD Bolt Circle Hole Dia No. Holes Thickness Overall Thickness Dia at Base Bore Weight
A C T L E B
4 9.00 7.50 0.750 8 0.938 1.312 5.312 4.57 13
5 10.00 8.50 0.875 8 0.938 1.438 6.438 5.66 14
6 11.00 9.50 0.875 8 1.000 1.562 7.562 6.72 17
8 13.50 11.75 0.875 8 1.125 1.750 9.688 8.72 28
10 16.00 14.25 1.000 12 1.188 1.938 12.000 10.88 37
12 19.00 17.00 1.000 12 1.250 2.188 14.375 12.88 59
14 21.00 18.75 1.125 12 1.375 2.250 15.750 14.19 78
16 23.50 21.25 1.125 16 1.438 2.500 18.000 16.19 101
18 25.00 22.75 1.250 16 1.562 2.688 19.875 18.19 110
20 27.50 25.00 1.250 20 1.688 2.875 22.000 20.19 139
22 29.50 27.25 1.375 20 1.812 3.125 24.000 22.19 162
24 32.00 29.50 1.375 20 1.875 3.250 26.125 24.19 197
26 34.25 31.75 1.375 24 2.000 3.375 28.500 26.19 235
28 36.50 34.00 1.375 28 2.062 3.438 30.750 28.19 269
30 38.75 36.00 1.375 28 2.125 3.500 32.750 30.19 303
32 41.75 38.50 1.625 28 2.250 3.625 35.000 32.19 375
34 43.75 40.50 1.625 32 2.312 3.688 37.000 34.19 401
36 46.00 42.75 1.625 32 2.375 3.750 39.250 36.19 452
38 48.75 45.25 1.625 32 2.375 3.750 41.750 38.19 528
40 50.75 47.25 1.625 36 2.500 3.875 43.750 40.19 573
42 53.00 49.50 1.625 36 2.625 4.000 46.000 42.19 648
44 55.25 51.75 1.625 40 2.625 4.000 48.000 44.19 688
46 57.25 53.75 1.625 40 2.688 4.062 50.000 46.19 733
48 59.50 56.00 1.625 44 2.750 4.125 52.250 48.19 799
50 61.75 58.25 1.875 44 2.750 4.125 54.250 50.19 827
52 64.00 60.50 1.875 44 2.875 4.250 56.500 52.19 922
54 66.25 62.75 1.875 44 3.000 4.375 58.750 54.19 1024
60 73.00 69.25 1.875 52 3.125 4.500 65.250 60.19 1253
66 80.00 76.00 1.875 52 3.375 4.875 71.500 66.19 1623
72 86.50 82.50 1.875 60 3.500 5.000 78.500 72.19 1922
78 93.00 89.00 2.125 64 3.875 5.375 84.500 78.19 2279
84 99.75 95.50 2.125 64 3.875 5.375 90.500 84.19 2586
90 106.50 102.00 2.438 68 4.250 5.750 96.750 90.19 3061
96 113.25 108.50 2.438 68 4.250 5.750 102.750 96.19 3432

AWWA C207 CLASS F RING FLANGE (300 PSI*) Dimensions

Nom Size Drilling Thickness Weight
OD Bolt Circle Hole Dia No. Holes Slip-On Blind Bore Slip-on Blind
A C T T B
4 10.00 7.88 0.875 8 1.130 1.130 4.57 18 25
5 11.00 9.25 0.875 8 1.210 1.210 5.66 22 33
6 12.50 10.62 0.875 12 1.310 1.310 6.73 30 46
8 15.00 13.00 1.000 12 1.310 1.310 8.73 40 66
10 17.50 15.25 1.125 16 1.500 1.500 10.88 56 102
12 20.50 17.75 1.250 16 1.630 1.630 12.88 83 152
14 23.00 20.25 1.250 20 1.940 1.940 14.19 128 228
16 25.50 22.50 1.375 20 2.140 2.140 16.19 167 310
18 28.00 24.75 1.375 24 2.250 2.250 18.19 204 392
20 30.50 27.00 1.375 24 2.330 2.330 20.19 247 482
22 33.00 29.25 1.375 24 2.500 2.500 22.19 307 606
24 36.00 32.00 1.625 24 2.690 2.690 24.19 388 776
26 38.25 34.50 1.875 28 3.000 3.000 26.19 451 977
28 40.75 37.00 1.875 28 3.130 3.130 28.19 532 1156
30 43.00 39.25 1.875 28 3.150 3.166 30.19 586 1303
32 45.25 41.50 1.875 28 3.250 3.332 32.19 657 1518
34 47.50 43.50 1.875 28 3.380 3.475 34.19 741 1745
36 50.00 46.00 2.125 32 3.460 3.671 36.19 802 2042
38 52.25 48.00 2.125 32 3.500 3.815 38.19 874 2317
40 54.25 50.25 2.125 36 3.630 3.982 40.19 937 2608
42 57.00 52.75 2.125 36 3.810 4.171 42.19 1103 3015
44 59.25 55.00 2.125 36 4.000 4.338 44.19 1237 3388
46 61.50 57.25 2.125 40 4.130 4.505 46.19 1344 3791
48 65.00 60.75 2.125 40 4.500 4.781 48.19 1718 4494

Why Masiva Solutions

  • Quality Products:
    • Raw Materials are adeuately tested
    • Conformaity to ASTM, ASME, DIN, EN, JIS.
    • Marking, Heat Number. Specificatios
    • 100% Radiography Test Report
    • Third Party Inspection, Buyer Inspection
  • Value Added Services:
    • Epoxy & fbe coating
    • Hot dipped galvanizing.
    • Sand blasting
    • Electro polish or other special finishes
    • Custom shape cutting, fabrication services
    • Threading, soldering
  • Manufacturing Expertise:
    • Custom size flanges
    • High quality Industrial Flanges manufacturer.
    • Accurate dimensions
    • Products with unifrom wall thickness
    • We use top quality raw materials
    • Over 10 years of manufacturing experience

AWWA Flanges Materials

Most common Materials used in the production of AWWA Flanges are Carbon Steel, Stainless Steel, Duplex Steel, Nickel Alloys. Complete list of grades, materials, and manufacturing standards are given below.

Carbon Steel AWWA Flanges:

  • High Temperature Carbon Steel ASTM A105: A53, A106, API 5L
  • Low Temperature Carbon Steel ASTM A350: LF1, LF2, LF3
  • High Yield Carbon Steel ASTM A694: F42, F52, F60, F65

Alloy Steel AWWA Flanges:

  • Alloy Steel ASTM A182: F5, F9, F11, F22, F1, F5/F5a, F91

Stainless Steel AWWA Flanges:

  • Stainless Steel ASTM A182: F304, F304H, F304L, F304N, F304LN, F309H, F310, F310H, F310MoLN, F316, F316H, F316L, F316N, F316LN, F316Ti, F317, F317L, F321, F321H, F347, F347H, F348, F348H, 904L

Duplex Steel AWWA Flanges:

  • Duplex Steel ASTM A182: Duplex 2205 (UNS S31803 – UNS S32205)
  • Super Duplex ASTM A182: UNS S32750 – UNS S32760

Nickel Alloy AWWA Flanges:

  • ASTM B160: Nickel 200 Flange | Nickel 201
  • ASTM B166: Inconel 600 Flange
  • ASTM B564: Inconel 625 Flange
  • ASTM B425: Incoloy 800 Flange
  • ASTM B564: Incoloy 825 Flange
  • ASTM B564: Monel K400 Flange | Monel 400
  • ASTM B564: Hastelloy C276 Flange | Hastelloy B, Hastelloy D, Hastelloy C-276, Hastelloy G

AWWA Flanges Manufacturing Process

AWWA Flanges Application Industries

  • Refineries
  • Food Processing & Dairy
  • Oil and Gas Industry
  • Off-Shore Oil Drilling Companies
  • Pharmaceutical Equipment
  • Pulp & Paper Industry
  • Power Generation
  • Specialty Chemicals
  • Sea Water Equipment
  • Gas Processing
  • Chemical Equipment
  • Heat Exchangers
  • Petrochemicals
  • Pharmaceuticals
  • Condensers

AWWA Flanges Inspection

Our qualified inspection engineer performed inspection on AWWA Flanges based on reference standards of ASME B31.1, B31.3, B16.5, ASME II, V, VIII, IX, DIN, AS/NZ standards etc. A visual test performed to identify surface porosity, cracks, and open structure defects. A dimensional inspection performed to confirm that the different types of Flange. We are manufactured according to the ASME Specification, that specifies the dimensions and indicates the design tolerances. A tensile test is conducted to test the yield strength, the tensile strength, and the elongation restrictions. A hardness test is conducted to check micro-hardness and surface hardness to confirm the acid environment performance and material performance. Magnetic particle inspection is performed to detect locating surface and near subsurface discontinuities in ferromagnetic materials, if some surface cracks, folds, thrust fault, pit or gas hole.

AWWA Flanges Packing & Forwarding

We follow the packing procedure of AWWA Flanges to insure damage-free delivery of AWWA Pipe Flange to our valuable customers in India and overseas. usually, the packing way includes a wooden pallet, wooden box, iron & steel pallet, iron & steel cage. Because the normal wooden pallets or wooden boxes have to do fumigation treatment, we choose plywood box or case or plywood pallet to pack Series A and Series B AWWA Flange without fumigation treatment. Whatever plywood or iron & steel packing way, We make sure that it must be strong, seaworthy, waterproof. All details of AWWA Flange are also stick with flanges packing so that it can be easy to understand and we ensure that packing can ease the process of loading and unloading goods.

AWWA Flanges Export & Supply to below mentioned Countries

MIDDLE EAST: Saudi Arabia (KSA), United Arab Emirates (UAE), Iran, Iraq, Jordan, Qatar, Bahrain, Oman, Kuwait, Turkey, Yemen, Syria, Cyprus.
ASIA: Malaysia, India, Taiwan, Cambodia, Singapore, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Myanmar.
SOUTH AMERICA: Venezuela, Argentina, Bolivia, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Brazil, Chile.
AFRICA: South Africa, Nigeria, Algeria, Angola, Libya, Egypt, Gabon, Sudan, Equatorial Guinea, The Republic Of Congo.
NORTH AMERICA: USA, Canada, Mexico, Panama, Costa Rica, Puerto Rico, Trinidad And Tobago, Jamaica, Bahamas, Denmark.
EUROPE: UK, Netherlands, Russia, Norway, Germany, France, Italy, Spain, Ukraine, Belgium, Greece, Hungary, Albania, Austria, Finland, Ireland, Croatia, Slovenia, Malta, Switzerland, Slovakia, Czech Republic, Portugal.

AWWA Flanges Export & Supply to below Mentioned Cities

Mumbai, Thane, Navi Mumbai, Pune, New Delhi, Secunderabad, Gimhae-si, Haryana, Colombo, Lahore, Thiruvananthapuram, Milan, Moscow, Dallas, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Petaling Jaya, Ernakulam, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, Vung Tau, Al Khobar, Atyrau, Lagos, Ulsan, Faridabad, Houston, Hanoi, Toronto, Hong Kong, Rajkot, Bengaluru, Chennai, Surat, New York, Caracas, Howrah, Sydney, Ahvaz, Karachi, Algiers, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, Chiyoda, Dubai, Seoul, Hyderabad, Singapore, Doha, Jeddah, Manama, Montreal, Brisbane, Los Angeles, Ankara, Ho Chi Minh City, Bhopal, Mexico City, Ludhiana, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, London, Muscat, Edmonton, Busan, Visakhapatnam, Bogota, Melbourne, Madrid, La Victoria, Granada, Courbevoie, Al Jubail, Port-of-Spain.

AWWA Flange Manufacturer in Italy

Masiva Metal is a trusted AWWA Flange manufacturer in Italy, offering quality flanges in various materials, sizes, pressure classes and specifications for industrial applications.

AWWA Flange Supplier in Italy

Masiva Metal is a reliable AWWA Flange supplier in Italy, providing quality industrial flanges in multiple materials, sizes, pressure ratings and specifications.

AWWA Flange Manufacturer in Belgium

Masiva Metal is a reliable AWWA Flange manufacturer in Belgium, providing precision flanges in different materials, sizes, pressure classes and specifications for industrial requirements.

AWWA Flange Supplier in Belgium

Masiva Metal supplies AWWA Flanges in Belgium with reliable quality, varied materials, sizes, pressure ratings and specifications for diverse industrial applications.

AWWA Flange Manufacturer in UAE

Masiva Metal is a trusted AWWA Flange manufacturer in UAE, offering durable flanges in various materials, sizes, pressure classes and specifications for industrial applications.

AWWA Flange Supplier in UAE

Masiva Metal is a reliable AWWA Flange supplier in UAE, offering quality flanges in multiple materials, sizes, pressure ratings and specifications for industrial needs.

AWWA Flange Manufacturer in Spain

Masiva Metal is an experienced AWWA Flange manufacturer in Spain, offering quality industrial flanges in different materials, sizes, pressure classes and specifications.

AWWA Flange Supplier in Spain

Masiva Metal supplies AWWA Flanges in Spain, providing reliable flange solutions in various materials, sizes, pressure ratings and specifications.

AWWA Flange Manufacturer in Germany

Masiva Metal is a trusted AWWA Flange manufacturer in Germany, producing quality flanges in multiple materials, sizes, pressure classes and specifications for industrial applications.

AWWA Flange Supplier in Germany

Masiva Metal is a reliable AWWA Flange supplier in Germany, offering quality industrial flanges in various materials, sizes, pressure ratings and specifications.

AWWA Flange Manufacturer in South Korea

Masiva Metal is a reliable AWWA Flange manufacturer in South Korea, offering precision flanges in different materials, sizes, pressure classes and specifications for industrial use.

AWWA Flange Supplier in South Korea

Masiva Metal supplies AWWA Flanges in South Korea with quality materials, varied sizes, pressure ratings and specifications for demanding industrial applications.

AWWA Flange Manufacturer in Vietnam

Masiva Metal is a trusted AWWA Flange manufacturer in Vietnam, offering durable industrial flanges in various materials, sizes, pressure classes and specifications.

AWWA Flange Supplier in Vietnam

Masiva Metal is a reliable AWWA Flange supplier in Vietnam, providing quality flanges in multiple materials, sizes, pressure ratings and specifications.

AWWA Flange Manufacturer in Philippines

Masiva Metal is a reliable AWWA Flange manufacturer in Philippines, offering quality flanges in different materials, sizes, pressure classes and specifications for industrial applications.

AWWA Flange Supplier in Philippines

Masiva Metal supplies AWWA Flanges in the Philippines, offering reliable flange solutions in various materials, sizes, pressure ratings and specifications.

AWWA Flange Manufacturer in Saudi Arabia

Masiva Metal is a trusted AWWA Flange manufacturer in Saudi Arabia, providing quality industrial flanges in multiple materials, sizes, pressure classes and specifications.

GOST Flanges Supplier in Italy

Masiva Metal is a reliable GOST Flanges supplier in Italy, providing quality industrial flanges in multiple materials, sizes, pressure ratings and specifications.

GOST Flanges Supplier in Belgium

Masiva Metal supplies GOST Flanges in Belgium with reliable quality, varied materials, sizes, pressure ratings and specifications for industrial applications.

GOST Flanges Supplier in UAE

Masiva Metal is a reliable GOST Flanges supplier in UAE, offering quality flanges in multiple materials, sizes, pressure ratings and specifications for industrial needs.

GOST Flanges Supplier in Spain

Masiva Metal supplies GOST Flanges in Spain, providing reliable flange solutions in various materials, sizes, pressure ratings and specifications.

GOST Flanges Supplier in Germany

Masiva Metal is a reliable GOST Flanges supplier in Germany, offering quality industrial flanges in various materials, sizes, pressure ratings and specifications.

GOST Flanges Supplier in South Korea

Masiva Metal supplies GOST Flanges in South Korea with quality materials, varied sizes, pressure ratings and specifications for demanding industrial applications.

GOST Flanges Supplier in Vietnam

Masiva Metal is a reliable GOST Flanges supplier in Vietnam, providing quality flanges in multiple materials, sizes, pressure ratings and specifications.

GOST Flanges Supplier in Philippines

Masiva Metal supplies GOST Flanges in the Philippines, offering reliable flange solutions in various materials, sizes, pressure ratings and specifications.

GOST Flanges Supplier in Saudi Arabia

Masiva Metal is a reliable GOST Flanges supplier in Saudi Arabia, offering durable flanges in various materials, sizes, pressure ratings and specifications for industrial requirements.

Category:

Description

An AWWA Flange is an industrial piping flange commonly associated with waterworks applications and American Water Works Association standards. AWWA flange specifications are particularly important in water transmission, distribution, treatment and related infrastructure projects where standardized flange connections are required.

One of the best-known specifications is AWWA C207, which covers steel pipe flanges for waterworks service. AWWA C207 includes requirements for different classes and sizes of steel pipe flanges and is widely referenced in water and municipal piping applications.

AWWA flanges provide a bolted connection between pipes, valves, fittings, pumps and other equipment. The connection can be disconnected for inspection, maintenance and replacement, making flanged piping practical for large-scale water infrastructure.

When purchasing an AWWA flange, buyers should identify the applicable AWWA specification, flange class, nominal size, flange type, material, facing and dimensional requirements.

AWWA Flange

An AWWA Flange is a flange designed for piping applications associated with AWWA requirements. It is especially relevant to waterworks systems where pipes and equipment need reliable bolted connections.

AWWA flanges can be used for connecting:

  • Water transmission pipelines
  • Water distribution systems
  • Valves
  • Pumps
  • Water treatment equipment
  • Pipe fittings
  • Mechanical equipment
  • Large-diameter piping components

The exact flange design depends on the applicable AWWA specification and project requirements.

For procurement, simply requesting an “AWWA flange” may not provide enough information. The buyer should specify the applicable standard, size, class and configuration.

AWWA Flanges

AWWA Flanges are available in different designs and dimensional configurations depending on the applicable specification.

AWWA C207 is particularly associated with steel pipe flanges for waterworks service. It includes different flange classes and dimensional requirements for waterworks piping.

When selecting AWWA flanges, consider:

  • Nominal pipe size
  • Flange class
  • Outside diameter
  • Bolt-hole arrangement
  • Flange thickness
  • Facing
  • Pipe wall thickness
  • Material
  • Operating pressure
  • Installation requirements

A complete technical specification should be established before manufacturing or purchasing the flange.

AWWA C207 Flange

An AWWA C207 Flange is a steel pipe flange manufactured according to the AWWA C207 specification for waterworks service.

AWWA C207 covers steel pipe flanges for waterworks service and provides dimensional and other requirements applicable to different flange classes.

Commonly referenced C207 flange classes include:

  • Class B
  • Class D
  • Class E
  • Class F
  • Class G
  • Class H

The applicable class must be selected according to the piping design and project requirements.

AWWA C207 is particularly relevant to water infrastructure projects where steel pipe flanges are required for connections between pipe, valves, fittings and equipment.

Before ordering an AWWA C207 Flange, the buyer should confirm the edition of the specification and the required flange class.

AWWA Steel Flange

An AWWA Steel Flange is a steel flange intended for applications governed by applicable AWWA requirements.

Steel provides the structural characteristics required for many waterworks piping applications, but the appropriate material and fabrication requirements should always be established according to the project specification.

When sourcing an AWWA Steel Flange, buyers should confirm:

  • Applicable AWWA standard
  • Flange class
  • Nominal diameter
  • Material specification
  • Pipe wall thickness
  • Bolt-hole dimensions
  • Facing requirements
  • Inspection requirements
  • Coating requirements where applicable

The material should not be assumed simply from the phrase “steel flange.”

AWWA Pipe Flange

An AWWA Pipe Flange provides a bolted connection between water piping and compatible components.

In waterworks systems, flanges can connect pipes with:

  • Valves
  • Pumps
  • Flow-control equipment
  • Fittings
  • Mechanical equipment
  • Pipeline accessories

The flanged joint generally consists of mating flange faces, gasket and bolting.

Correct alignment is essential during installation. The flange and connected pipe should be properly supported to prevent excessive stress on the joint.

AWWA pipe flange dimensions should be checked against the applicable specification before procurement.

AWWA Standard Flange

An AWWA Standard Flange refers to a flange designed according to the relevant AWWA specification.

For steel pipe flanges, AWWA C207 is a key reference for waterworks service.

The important point for buyers is to identify the exact standard rather than relying only on the generic term AWWA.

A proper purchase specification should identify:

  • AWWA standard
  • Standard edition where required
  • Flange class
  • Nominal size
  • Flange type
  • Material
  • Facing
  • Coating requirements
  • Inspection requirements

This information helps ensure that the supplied product matches the engineering requirement.

AWWA Ring Flange

An AWWA Ring Flange is a ring-shaped steel flange used to create a bolted connection in piping systems.

Ring flanges are particularly useful in large-diameter piping applications where robust bolted connections are required.

Important factors include:

  • Flange outside diameter
  • Bolt-circle diameter
  • Bolt-hole quantity
  • Bolt-hole diameter
  • Flange thickness
  • Pipe diameter
  • Flange class

The exact dimensions should be selected according to the applicable AWWA standard and project drawing.

AWWA Flange Manufacturer

Choosing a reliable AWWA Flange Manufacturer is important for water infrastructure projects because flange dimensions and class requirements need to match the piping system.

When evaluating a manufacturer, buyers can consider:

  • Experience with AWWA specifications
  • Manufacturing capabilities
  • Dimensional inspection
  • Material traceability
  • Quality control procedures
  • Product marking
  • Documentation
  • Export packaging
  • Ability to meet project-specific requirements

Masiva Metals can be approached for AWWA flange sourcing requirements where customers provide the required standard, class, size, material and configuration.

AWWA Flange Supplier

A professional AWWA Flange Supplier should be able to understand the technical requirements associated with waterworks flange applications.

Before requesting a quotation, buyers should provide:

  • Applicable AWWA standard
  • Flange class
  • Nominal pipe size
  • Material
  • Flange type
  • Facing requirements
  • Quantity
  • Coating requirements
  • Inspection requirements
  • Delivery destination

Providing complete information helps reduce the risk of receiving an incorrectly dimensioned flange.

AWWA Blind Flange

An AWWA Blind Flange is used to close the end of a flanged pipeline or equipment connection.

Blind flanges can be useful for:

  • Closing pipeline ends
  • Isolating sections of piping
  • Valve and equipment connections
  • Maintenance access
  • Future pipeline extensions

A blind flange must be suitable for the applicable pressure and piping design.

The flange class, dimensions, bolt-hole pattern and material should be verified before installation.

AWWA Flange Manufacturer in Italy & Belgium

A project requiring an AWWA Flange Manufacturer in Italy & Belgium may involve water infrastructure, industrial water systems or equipment designed around American waterworks standards.

Before procurement:

  • Confirm the applicable AWWA specification.
  • Specify the flange class.
  • Provide nominal size.
  • Confirm material.
  • Provide drawings where available.
  • Specify coating requirements.
  • Confirm inspection documentation.

Masiva Metals can be approached for international AWWA flange sourcing requirements.

AWWA Flange Supplier in UAE

An AWWA Flange Supplier in UAE can support water infrastructure and industrial projects where AWWA specifications are required.

For procurement, the buyer should provide the complete technical requirement, including flange class and dimensions.

This is especially important when the flange is being connected to equipment manufactured according to another standard.

AWWA Flange Manufacturer in Spain

An AWWA Flange Manufacturer in Spain can support projects requiring AWWA-standard steel pipe flanges.

The manufacturer should receive complete project information, including:

  • Standard
  • Class
  • Size
  • Material
  • Flange type
  • Facing
  • Quantity
  • Coating
  • Inspection requirements

This helps ensure the flange is produced according to the intended waterworks application.

AWWA Flange Supplier in Germany & South Korea

An AWWA Flange Supplier in Germany & South Korea can be relevant for international water, industrial and infrastructure projects using AWWA-standard components.

Before ordering, verify compatibility with:

  • Existing pipe
  • Valves
  • Pumps
  • Fittings
  • Equipment nozzles
  • Gaskets
  • Bolting

AWWA dimensions should not automatically be assumed compatible with DIN, EN or ASME flange dimensions.

AWWA Flange Manufacturer in Italy

An AWWA Flange Manufacturer in Italy may be required when an Italian project uses AWWA-standard waterworks equipment or piping.

The purchase inquiry should clearly identify the applicable standard and flange class.

Providing a technical drawing can also help the manufacturer verify dimensional requirements before production.

AWWA Flange Supplier in Belgium

An AWWA Flange Supplier in Belgium should be able to supply the required flange according to the specified AWWA standard and project requirements.

Important procurement information includes:

  • Flange class
  • Nominal diameter
  • Material
  • Dimensions
  • Facing
  • Quantity
  • Coating
  • Inspection
  • Documentation

Complete specifications make international procurement more efficient.

AWWA Flange Manufacturer in Germany

An AWWA Flange Manufacturer in Germany can support industrial and waterworks projects requiring American Water Works Association specifications.

The buyer should verify the exact AWWA specification and class before placing an order.

AWWA flanges should not be substituted with DIN or EN flanges simply because the nominal pipe diameter appears similar.

AWWA Flange Supplier in Vietnam & Philippines

An AWWA Flange Supplier in Vietnam & Philippines can support water treatment, water transmission and industrial infrastructure projects where AWWA flange specifications are required.

For international supply, customers should provide:

  • Standard
  • Class
  • Size
  • Material
  • Type
  • Coating requirement
  • Quantity
  • Inspection requirement
  • Destination

This helps the supplier understand the complete requirement.

AWWA Flange Manufacturer in Saudi Arabia & UAE

An AWWA Flange Manufacturer in Saudi Arabia & UAE can be relevant for water infrastructure and industrial projects that use AWWA-standard piping components.

The buyer should confirm the applicable specification and class before procurement.

Masiva Metals can be approached for project-specific AWWA flange requirements, with technical information provided for accurate product selection.

Types of AWWA Flanges

AWWA flange requirements vary according to the applicable standard and application. Common flange arrangements used in waterworks systems can include:

Ring Flanges

Ring flanges provide a simple bolted connection and are commonly associated with large-diameter steel piping applications.

Blind Flanges

Blind flanges close pipeline or equipment openings and can be removed when access or future connection is required.

Welding Flanges

Welded flange arrangements connect the flange to the pipe through welding and can be used where the piping design calls for a welded connection.

The exact designation and dimensions should be confirmed against the applicable AWWA specification.

AWWA Flange Applications

AWWA flanges are primarily relevant to waterworks and related infrastructure.

Typical applications include:

  • Water transmission pipelines
  • Municipal water distribution
  • Water treatment plants
  • Pumping stations
  • Water storage facilities
  • Industrial water systems
  • Raw-water pipelines
  • Process-water systems
  • Valves and valve chambers
  • Large-diameter steel pipelines

Actual application suitability depends on the specific flange class, material, pressure and project design.

Benefits of AWWA Flanges

AWWA flanges can offer several practical advantages for waterworks piping systems.

  • Standardized flange dimensions
  • Suitable options for large-diameter piping
  • Detachable bolted connections
  • Convenient valve installation
  • Easier equipment maintenance
  • Replacement-friendly connections
  • Compatibility with specified waterworks piping systems
  • Availability in different flange classes

Correct selection and installation remain essential for reliable performance.

How to Select an AWWA Flange

Selecting the correct AWWA flange involves several important steps.

1. Identify the AWWA Specification

Confirm which AWWA standard applies to the project.

2. Select the Flange Class

For AWWA C207 applications, identify the required class according to the project design.

3. Confirm Pipe Size

The flange must match the nominal pipe size and actual piping dimensions.

4. Confirm Material

Select the required steel material according to project requirements.

5. Check Dimensions

Verify outside diameter, thickness, bolt circle, bolt-hole dimensions and other applicable measurements.

6. Check Facing

Ensure the flange face is compatible with the mating component and gasket.

7. Confirm Coating

Waterworks projects may have specific corrosion-protection or coating requirements.

8. Review Inspection Requirements

Confirm whether dimensional, material or additional inspection documentation is required.

AWWA C207 Flange Classes

AWWA C207 includes several classes of steel pipe flanges.

The applicable class should be selected based on the project design rather than simply choosing the class based on pipe size.

The flange class is an important procurement parameter because it affects the applicable flange dimensions and design requirements.

Buyers should always state the required class in purchase inquiries.

AWWA Flange vs ASME Flange

AWWA flanges and ASME flanges serve different standard systems and should not automatically be considered interchangeable.

Differences may include:

  • Dimensional requirements
  • Pressure classification
  • Bolt-hole patterns
  • Flange thickness
  • Outside diameter
  • Application focus
  • Design requirements

AWWA flanges are particularly associated with waterworks service, while ASME flange standards cover broader pressure-piping applications.

If a project requires an AWWA flange, substitution with an ASME flange should only be made after engineering verification.

AWWA Flange vs DIN Flange

AWWA and DIN flange systems can have different dimensions and design classifications.

Important differences may include:

  • Bolt-hole arrangement
  • Outside diameter
  • Thickness
  • Pressure classification
  • Facing
  • Standard designation

Therefore, a DIN flange should not be substituted for an AWWA flange simply because both have the same nominal pipe diameter.

Quality Inspection of AWWA Flanges

Quality inspection may include:

  • Visual inspection
  • Dimensional inspection
  • Material verification
  • Bolt-hole inspection
  • Flange-face inspection
  • Marking verification
  • Coating inspection where applicable
  • Documentation review
  • Additional testing where specified

The inspection plan should be agreed before production.

Installation of AWWA Flanges

Proper installation is important for maintaining a reliable waterworks flange connection.

  • Check the flange before installation.
  • Inspect the flange face.
  • Ensure proper pipe alignment.
  • Select a compatible gasket.
  • Install the correct bolting.
  • Tighten bolts in a suitable cross-pattern sequence.
  • Follow the specified tightening requirements.
  • Avoid excessive mechanical loading.
  • Inspect the completed connection before commissioning.

Installation should follow the applicable project engineering and safety procedures.

How to Order AWWA Flanges from Masiva Metals

When contacting Masiva Metals for an AWWA flange quotation, provide:

  • Product name
  • AWWA specification
  • Flange class
  • Nominal pipe size
  • Material
  • Flange type
  • Facing
  • Quantity
  • Coating requirements
  • Inspection requirements
  • Required documents
  • Delivery destination

A technical drawing or project specification can be included when available.

This information helps ensure that the quotation is prepared against the correct technical requirement.

Why Choose Masiva Metals for AWWA Flanges?

Masiva Metals can be approached for international sourcing of AWWA-standard flanges.

For project procurement, customers can discuss:

  • Applicable AWWA standard
  • Flange class
  • Size
  • Material
  • Flange configuration
  • Coating requirements
  • Inspection
  • Documentation
  • International delivery

The exact product configuration should always be confirmed before order placement.

FAQs About AWWA Flange

What is an AWWA Flange?

An AWWA Flange is a piping flange associated with American Water Works Association specifications and is commonly used in waterworks and related piping applications.

What is AWWA C207?

AWWA C207 is a specification associated with steel pipe flanges for waterworks service.

Where are AWWA Flanges used?

They are commonly used in water transmission, distribution, treatment plants, pumping stations, valves, equipment connections and related waterworks piping systems.

What is an AWWA C207 Flange?

An AWWA C207 Flange is a steel pipe flange manufactured according to the applicable requirements of AWWA C207 for waterworks service.

Are AWWA Flanges suitable for water pipelines?

AWWA flange specifications are specifically associated with waterworks service, making them relevant to many water pipeline applications. The exact product must still be selected according to the project requirements.

Can AWWA Flanges be used with DIN Flanges?

They should not be assumed to be interchangeable. Dimensional and connection compatibility must be verified before mating different flange standards.

What information is required to order an AWWA Flange?

The buyer should provide the AWWA specification, flange class, nominal size, material, flange type, facing, quantity and any coating, inspection or documentation requirements.

Can Masiva Metals supply AWWA Flanges internationally?

Masiva Metals can be approached for international AWWA flange sourcing requirements. The exact specification and product configuration should be confirmed for each project.

Conclusion

An AWWA Flange is an important component for waterworks piping systems where standardized flange connections are required. AWWA specifications, particularly AWWA C207 for steel pipe flanges, provide a framework for selecting appropriate flange dimensions and classes for waterworks service.

Choosing the right product requires careful consideration of the applicable AWWA specification, flange class, nominal size, material, dimensions, facing, coating and installation requirements. Compatibility with valves, pipes, pumps, fittings and equipment should also be verified before procurement.

For international projects across Italy, Belgium, UAE, Spain, Germany, South Korea, Vietnam, Philippines and Saudi Arabia, Masiva Metals can be approached for AWWA flange sourcing requirements. Providing complete technical specifications allows the appropriate flange configuration to be evaluated for the intended application.

Customer Reviews

No reviews yet.

Related products
